17mm Lever Waterproof Prewired Microswitch SPDT 3A IP67
SKU 481698
MPN: 481698
Availability:
35 in stock
Original price
£3.14
-
Original price
£3.14
Original price
£3.14
£3.14
£3.14
-
£3.14
Current price
£3.14

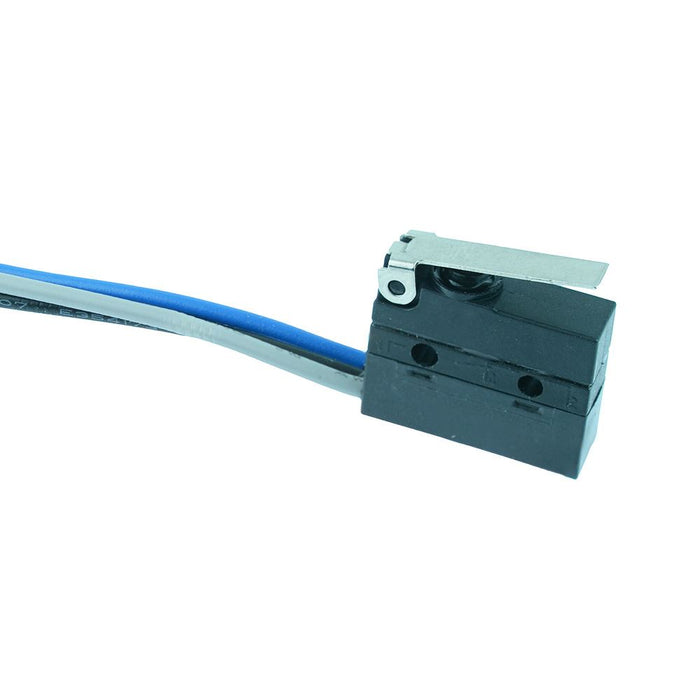

Miniature microswitch featuring a 17mm lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features 500mm flying leads and is suitable for domestic and industrial applications.
17.7mm lever actuator Rating: 3A 250VAC / 48VDC NO / NC contacts 500mm 20AWG flying leads Operating force: 105gf max Release force: 20gf min Pre-travel: 4.3mm max Over-travel 0.6mm min Differential travel: 0.7mm max Body dimensions: 19.9 x 6.4 x 15.4mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| MOQ | 1 |
| Number of Positions | 2 |
| Operating Force | 105gf Max |
| Protection Level | IP67 |
| Release Force | 20gf Min |
| Terminal Type | Leads |
| Voltage Rating | 250VAC |
