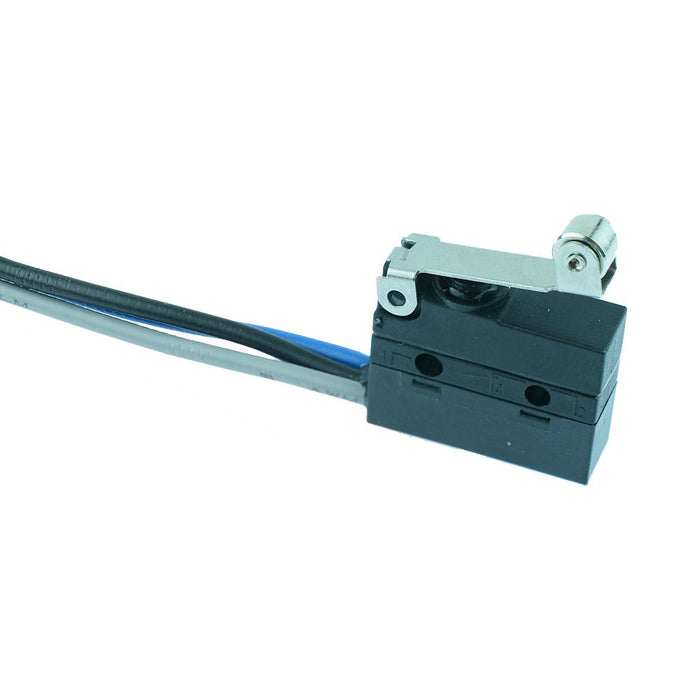

17mm Roller Lever Waterproof Prewired Microswitch SPDT 3A IP67
SKU 481700
MPN: 481700
Availability:
132 in stock
Original price
£2.76
-
Original price
£2.76
Original price
£2.76
Inc VAT
£2.76
-
£2.76
Current price
£2.76
Inc VAT
Miniature microswitch featuring a 17mm roller lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features 500mm flying leads and is suitable for domestic and industrial applications.
17.5mm roller lever actuator Rating: 3A 250VAC / 48VDC NO / NC contacts 500mm 20AWG flying leads Operating force: 110gf max Release force: 25gf min Pre-travel: 4.3mm max Over-travel 0.6mm min Differential travel: 0.7mm max Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
Specification
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 100,000 Cycles |
| Number of positions | 2 |
| Operating force | 110gf Max |
| Protection level | IP67 |
| Release force | 25gf Min |
| Terminal type | Leads |
| Voltage rating | 250VAC |
