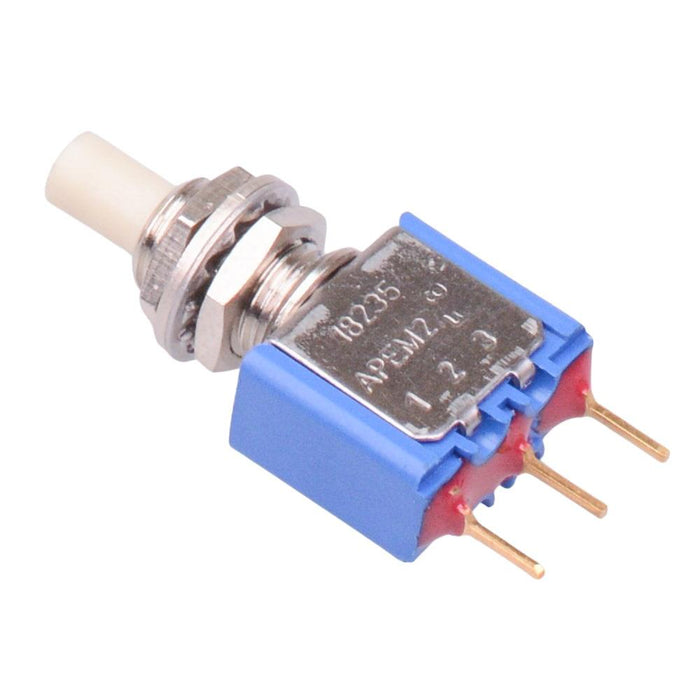

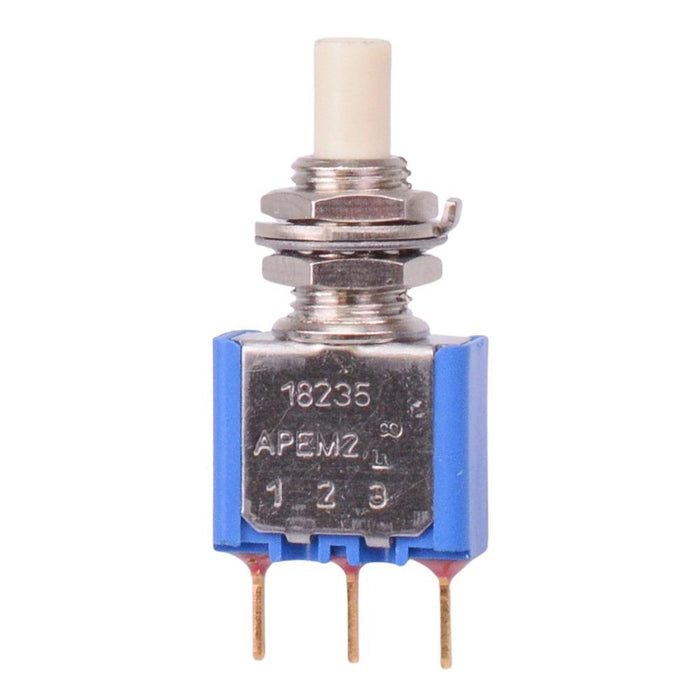

18235CD On-(On) Momentary Panel Mount Push Button Switch SPDT 0.1A 30VDC
by APEM
SKU 489772
MPN: 18235CD
Availability:
Out of stock
Sold out
Original price
£6.70
-
Original price
£6.70
Original price
£6.70
£6.70
-
£6.70
Current price
£6.70
The 18235CD is a snap-action momentary push button switch, featuring a positive tactile feedback when pressed and suitable for panel mount applications.
On-(On) momentary operation SPDT contacts Rating: 0.1A 30VDC Panel cut-out: 6.5mm Solder terminals Gold plated brass contacts 2.5mm max panel thickness Terminal pitch: 4.7mm Dimensions: 31.45 x 13.2 x 7.0mm (height x length x width)
Specification
| Actuation | Momentary |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 18000 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
