18235WCD6 On-(On) Right Angle Momentary PCB Push Button Switch SPDT 0.1A 30VDC
by APEM
SKU 487351
MPN: 18235WCD6
Availability:
796 in stock, ready to be shipped
Original price
£3.24
-
Original price
£3.24
Original price
£3.24
Inc VAT
£3.24
-
£3.24
Current price
£3.24
Inc VAT

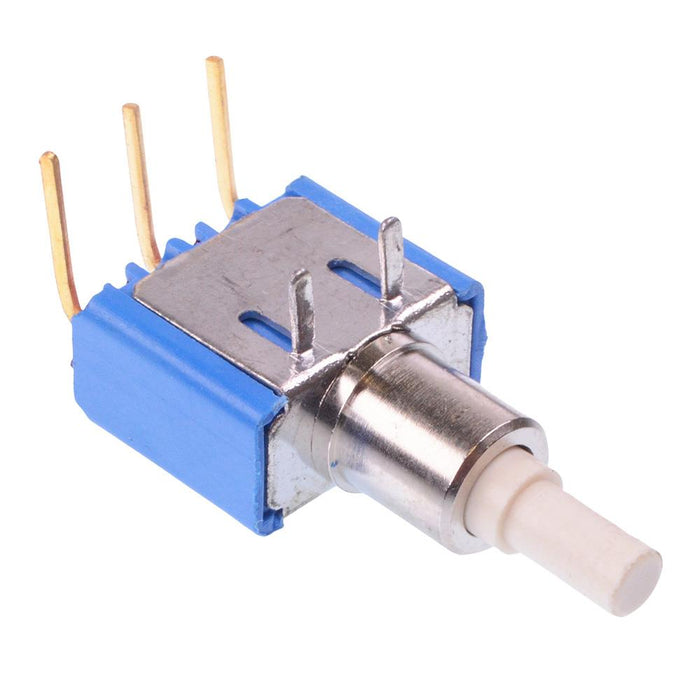

The 18235WCD6 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.
On-(On) momentary operation SPDT contacts Rating: 0.1A 30VDC Plain bushing Right angle PCB terminals Horizontal mounting Gold plated brass contacts Plunger: 3.1 x 5.85mm (diameter x height) Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.1A 30VDC |
| Current rating | 0.1A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to 65°C |
| Pitch | 4.7mm |
| Product series | 18000 |
| Switch operation | On-(On) |
| Terminal type | PCB |
| Voltage rating | 30VDC |
