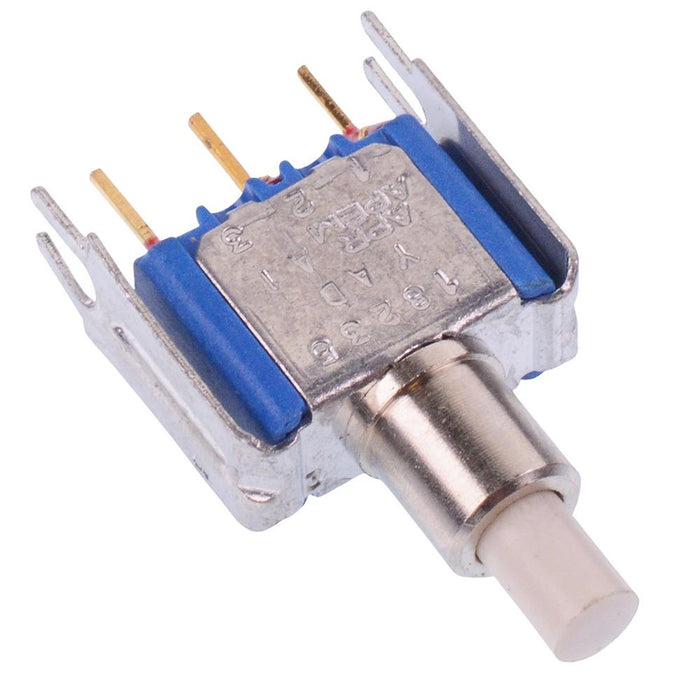

18235YAD3 On-(On) Momentary PCB Push Button Switch SPDT 1A 30VDC

SKU 488028

MPN: 18235YAD3

Back Order Availability: 10 Days

45 in stock, ready to be shipped
Original price £3.70 - Original price £3.70
Original price
£3.70 Inc VAT
£3.70 - £3.70
Current price £3.70 Inc VAT
The 18235YAD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.

  • On-(On) momentary operation
  • SPDT contacts
  • Rating: 1A 30VDC
  • Plain bushing
  • PCB terminals
  • Bracket mounting
  • Gold plated silver contacts
  • Short plunger (4mm diameter)
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Silver
    Contact rating 1A 30VDC
    Current rating 1A
    Electrical life 60,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to 65°C
    Pitch 4.7mm
    Product series 18000
    Switch operation On-(On)
    Terminal type PCB
    Voltage rating 30VDC
