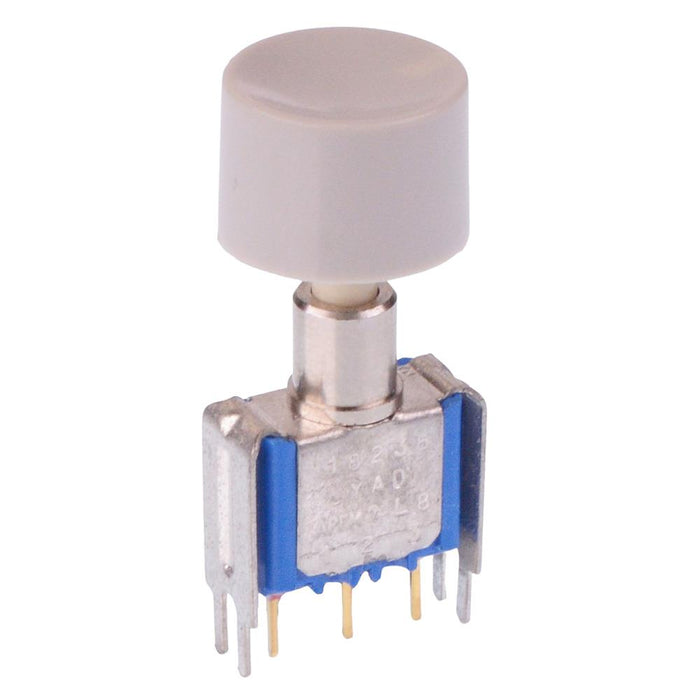

18235YAD6 On-(On) Grey Momentary PCB Push Button Switch SPDT 1A 30VDC

SKU 487961

MPN: 18235YAD6+U3404

50 in stock, ready to be shipped
Original price £3.71 - Original price £3.71
Original price
£3.71 Inc VAT
£3.71 - £3.71
Current price £3.71 Inc VAT
The 18235YAD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.

  • On-(On) momentary operation
  • SPDT contacts
  • Rating: 1A 30VDC
  • Grey U3404 cap 15.0 x 10.0 (diameter x height)
  • Plain bushing
  • PCB terminals
  • Bracket mounting
  • Gold plated silver contacts
  • Plunger: 3.1 x 5.85mm (diameter x height)
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Momentary
    Colour Grey
    Contact configuration SPDT
    Contact material Gold Plated Silver
    Contact rating 1A 30VDC
    Current rating 1A
    Electrical life 60,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to 65°C
    Pitch 4.7mm
    Product series 18000
    Switch operation On-(On)
    Terminal type PCB
    Voltage rating 30VDC
