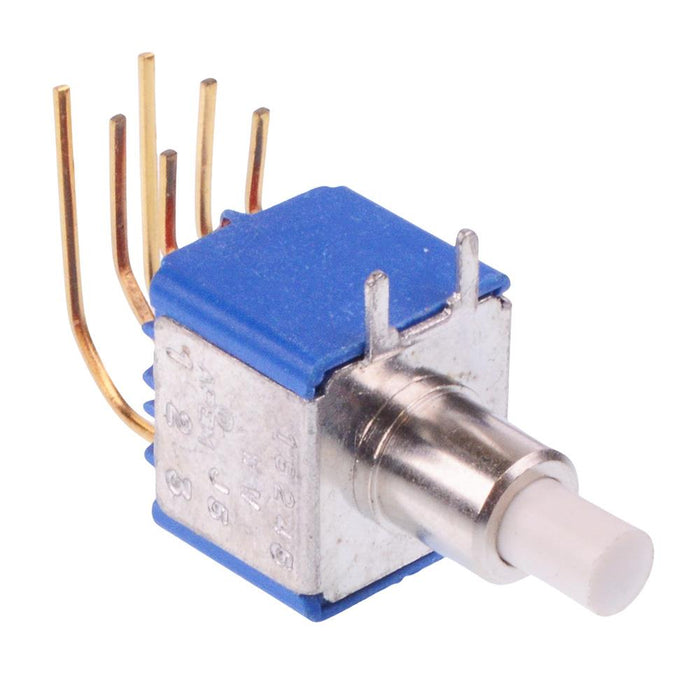

18245WWCD3 On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC
by APEM
SKU 487381
MPN: 18245WWCD3
Availability:
256 in stock
Original price
£7.38
-
Original price
£7.38
Original price
£7.38
£7.38
£7.38
-
£7.38
Current price
£7.38
The 18245WWCD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.
On-(On) momentary operation DPDT contacts Rating: 0.1A 30VDC Plain bushing Right angle PCB terminals Vertical mounting Gold plated brass contacts Short plunger (4mm diameter) Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 65°C |
| Pitch | 4.7mm |
| Product Series | 18000 |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
