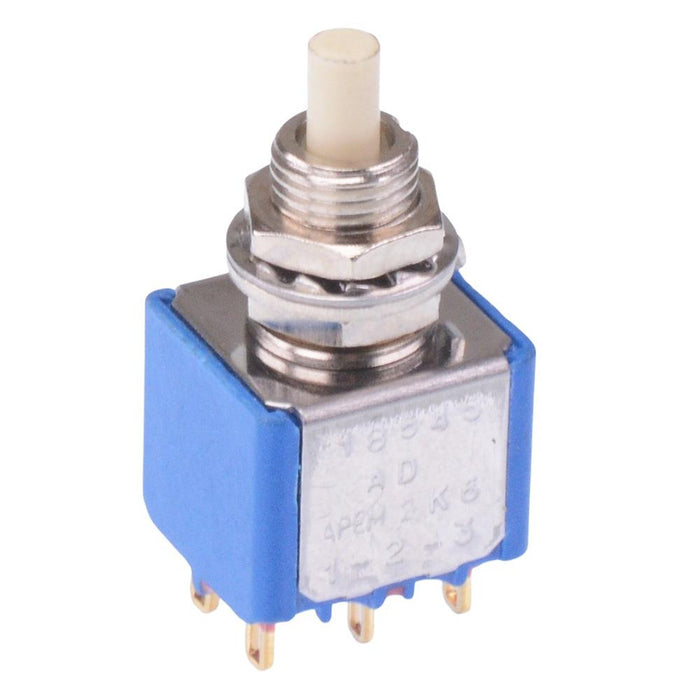

18545AD5 On-(On) Momentary Push Button Switch DPDT 1A 30VDC

SKU 487236

MPN: 18545AD5

Back Order Availability: 10 Days

1000 in stock, ready to be shipped
Original price £3.33 - Original price £3.33
Original price
£3.33 Inc VAT
£3.33 - £3.33
Current price £3.33 Inc VAT
The 18545AD5 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for panel mount applications.

  • On-(On) momentary operation
  • DPDT contacts
  • Rating: 1A 30VDC
  • 6.35mm threaded bushing
  • Solder terminals
  • 6.5mm panel cut-out
  • Gold plated silver contacts
  • Plunger: 3.1 x 6.3mm (diameter x height)
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Silver
    Contact rating 1A 30VDC
    Current rating 1A
    Electrical life 60,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -30°C to 65°C
    Panel cut out 6.5mm
    Pitch 4.7mm
    Product series 18000
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 30VDC
