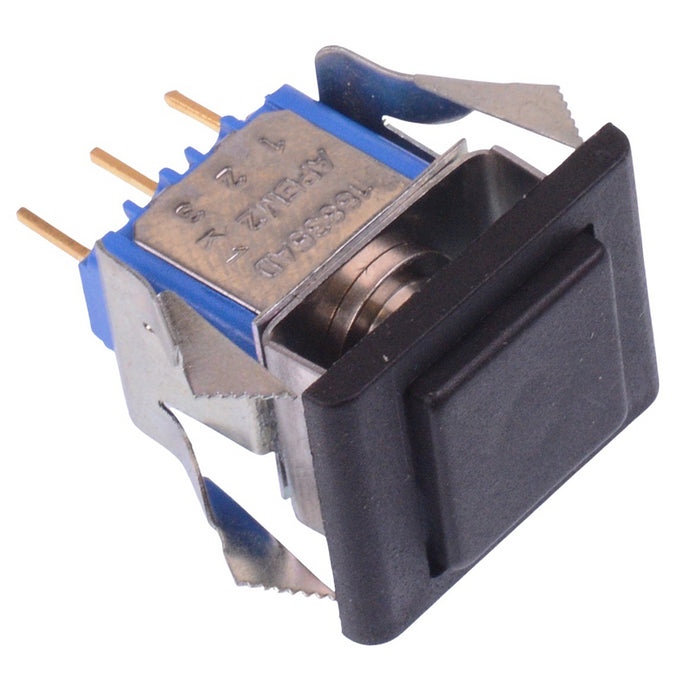

18835ADX662 Black On-(On) Momentary Panel Mount Push Button Switch SPDT 1A 30VDC
by APEM
SKU 487986
MPN: 18835ADX662+
Availability:
123 in stock
Original price
£8.20
-
Original price
£8.20
Original price
£8.20
£8.20
-
£8.20
Current price
£8.20
The 18835ADX662 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB and panel mount applications.
On-(On) momentary operation SPDT contacts Rating: 1A 30VDC Panel cut-out: 15 x 12.5mm Solder PCB terminals Gold plated silver contacts 2.5mm max panel thickness Black button Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 65°C |
| Panel Cut Out | 6.5mm |
| Pitch | 4.7mm |
| Product Series | 18000 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
