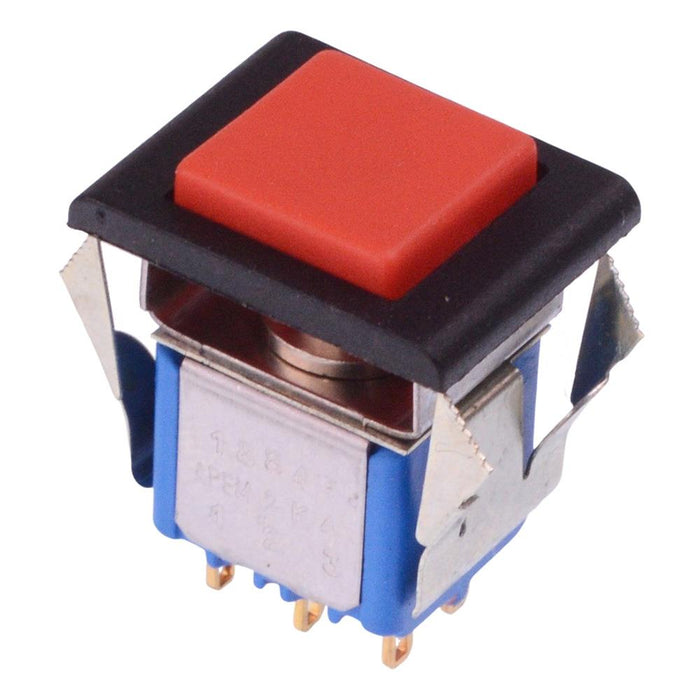

18845CD Red Button On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC
by APEM
SKU 487930
MPN: 18845CD+U916+
Availability:
Out of stock
Sold out
Original price
£8.20
-
Original price
£8.20
Original price
£8.20
£9.29
£9.29
-
£9.29
Current price
£9.29
The 18845CD is a snap-action momentary push button switch with a red button, featuring a positive tactile feedback when pressed and suitable for panel mount applications.
On-(On) momentary operation DPDT contacts Rating: 0.1A 30VDC Panel cut-out: 15 x 12.5mm Solder terminals Gold plated brass contacts 2.5mm max panel thickness Red button Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 65°C |
| Panel Cut Out | 15 x 12.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 18000 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
