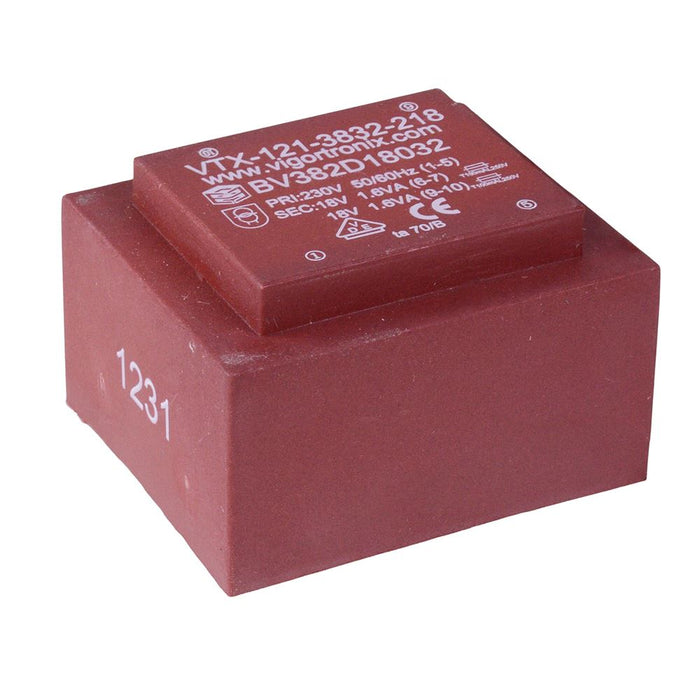

18V 3.2VA Encapsulated PCB Transformer 230V VTX-121-3832-218
by Vigortronix
SKU 486991
MPN: VTX-121-3832-218
Availability:
6 in stock
Original price
£5.11
-
Original price
£5.11
Original price
£5.11
£5.11
£5.11
-
£5.11
Current price
£5.11
18V high performance encapsulated PCB transformer manufactured by Vigortronix, featuring a single primary winding and 230V input voltage. The transformer features a 3.2VA power rating and is suitable for applications in rugged environments due to their construction and encapsulation.
230V input voltage 2 x 18V output voltage 3.2VA power rating 88mA output current Inherently Short-circuit proof Materials: UL94-V0 Manufactured and tested in accordance to EN61558, EN60950, CE UL, VDE and CE approved Dimensions: 41 x 35 x 28mm (length x width x height)
Specification
| Back Order Lead Time | 5 Days |
| Dielectric Strength | 4200Vrms |
| Height | 28mm |
| Length | 41mm |
| Maximum Ambient Temperature | 70°C |
| Output Current | 0.088A |
| Power | 3.2VA |
| Primary Voltage | 230V |
| Secondary Voltage | 2 x 18V |
| Weight | 145g |
| Width | 35mm |
