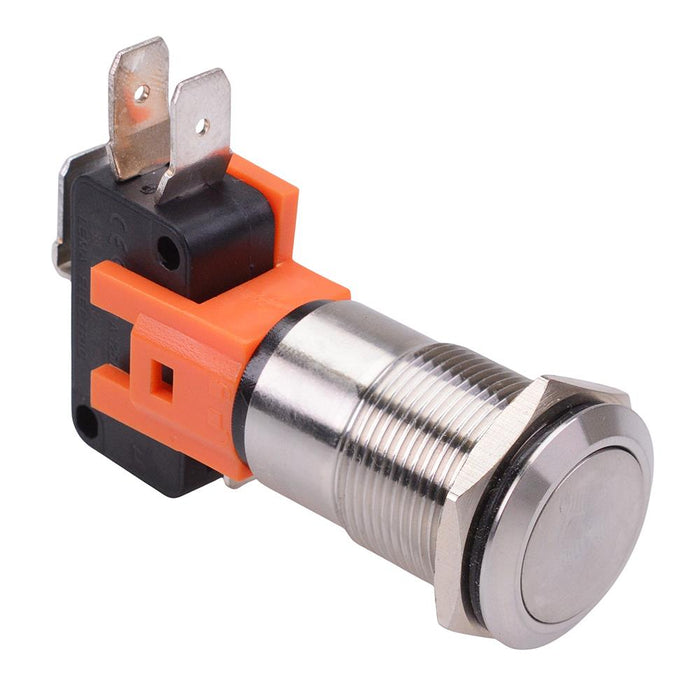

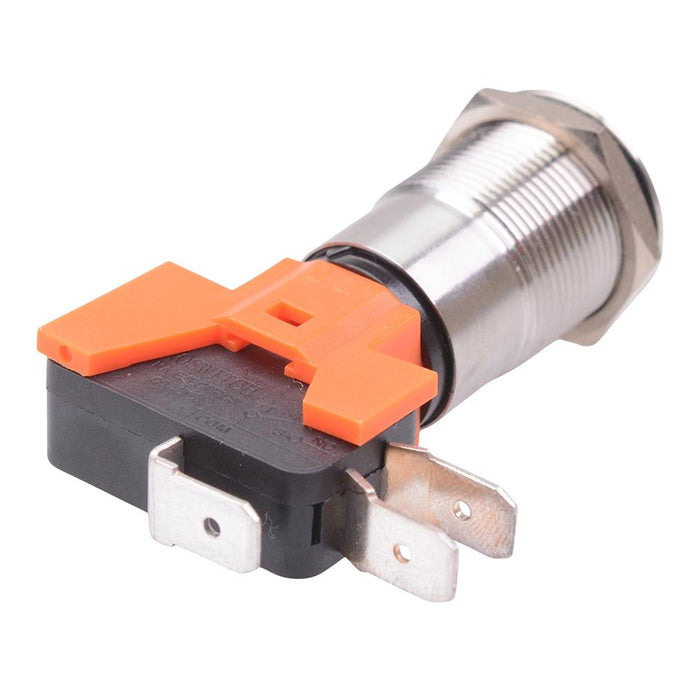

On-(On) 19mm Momentary Vandal Resistant Push Button Switch SPDT 21A
by Langir
SKU 482241
MPN: L19BFM321S
Availability:
38 in stock
Original price
£9.87
-
Original price
£9.87
Original price
£9.87
£9.87
£9.87
-
£9.87
Current price
£9.87
Momentary 19mm vandal resistant push button switch featuring a 21A current rating and IP65 protection level. The switch features SPDT contacts and a removable microswitch making it suitable for high current 12V applications including automotive.
Momentary On-(On) action NO/NC contacts IP65 protection rating 19mm panel cut-out diameter Stainless steel body Removable microswitch 6.35mm quick connect terminals Rating: 21A 250VAC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 21A 250VAC |
| Current Rating | 21A |
| Electrical Life | 50,000+ Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
