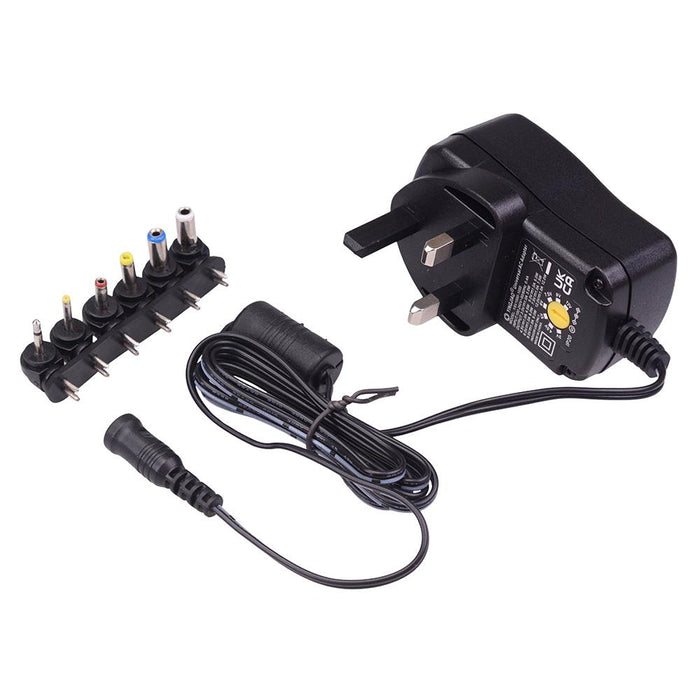

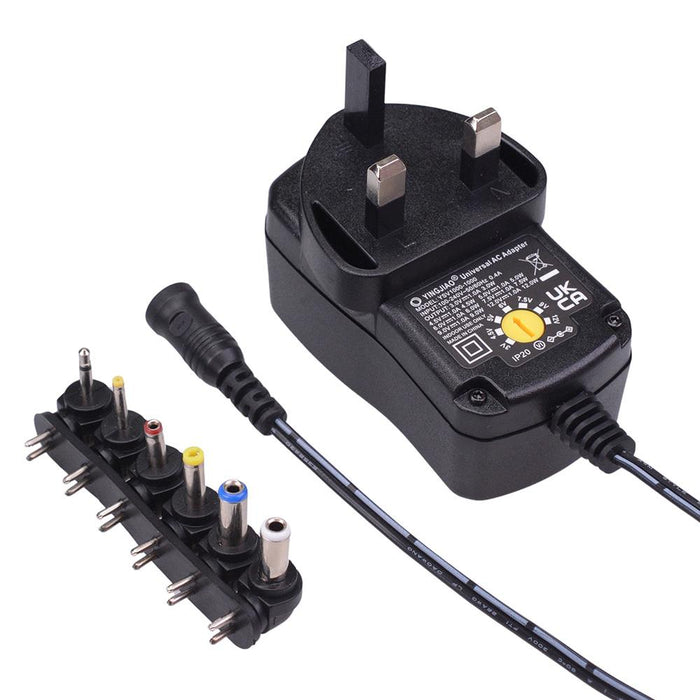

1A Variable Voltage 3-12V Plugtop Power Supply 3-Pin UK 12W
SKU 490335
MPN: YSV1000-1000B
Availability:
495 in stock
Original price
£7.15
-
Original price
£7.15
Original price
£7.15
£7.15
-
£7.15
Current price
£7.15
12W plugtop power supply featuring a variable voltage output from 3V to 12V. The power supply features a 1.2m cable length and is terminated with a range of DC plugs. The power supply is suitable for a wide range of applications including lighting, equipment, appliances, CCTV and various others.
Input voltage: 100-240VAC Output voltage: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12VDC Output current: 1A Power: 12W LED status indicator Supplied plugs: 3.5*1.35, 5.5*2.1, 5.5*2.5, 2.35*0.7, 4.0*1.7, 2.5 mono plug Complies with UKCA, CE, ROHS, REACH
Specification
Back Order Lead Time | 120 Days |
Input Frequency | 50-60Hz |
Input Voltage | 100-240VAC |
Maximum Temperature | 50°C |
MOQ | 1 |
Output Connector | Multiplug |
Output Current | 1A |
Output Voltage | 3-12VDC |
Over Current Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 12W |
Short Circuit Protection | Yes |
