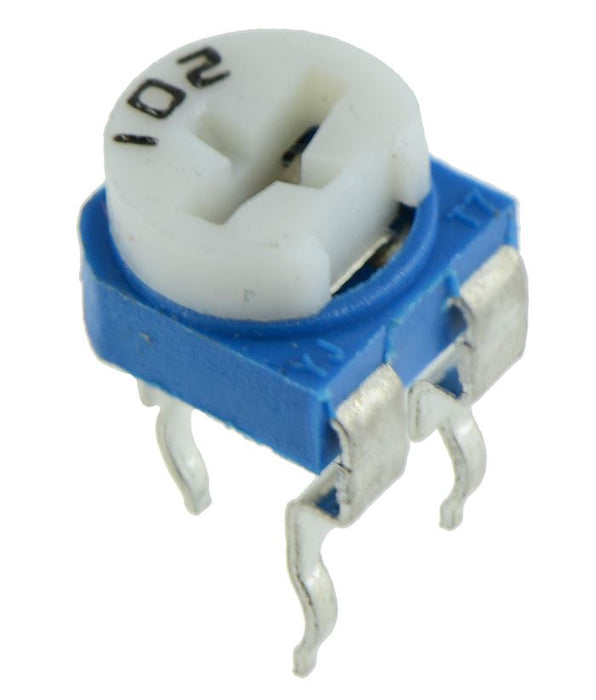

1k 6mm Horizontal Preset Trimmer Potentiometer
SKU 133059
MPN: 133059
Availability:
1747 in stock
Original price
£0.31
-
Original price
£0.31
Original price
£0.31
£0.31
-
£0.31
Current price
£0.31
Cermet trimmer potentiometers with a 210° rotation and 0.1W rated power suitable for horizontal PCB mounting.
1k linear 0.1W rated power Low rotation torque
Specification
| Back Order Lead Time | 30 Days |
| Maximum Voltage | 50VDC |
| MOQ | 5 |
| Mounting Type | PCB |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.1W |
| Resistance | 1KΩ |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 210° |
