1K Logarithmic 16mm Potentiometer Solder Lugs
SKU 133065
MPN: 133065
Availability:
906 in stock
Original price
£0.47
-
Original price
£0.47
Original price
£0.47
£0.47
-
£0.47
Current price
£0.47

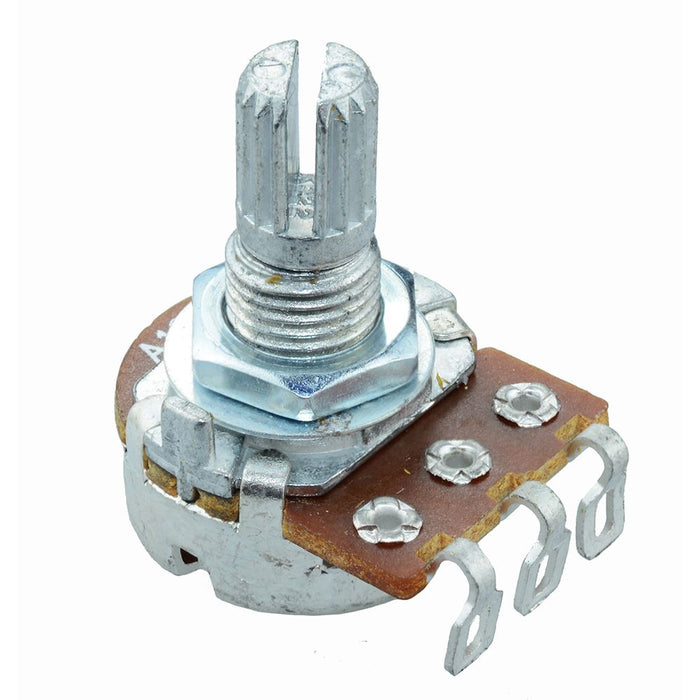

16mm potentiometers with a splined 6mm shaft and solder contacts.
1k logarithmic Standard 16mm diameter size Solder lug contacts 20% tolerance Panel cut-out: 7mm 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 150V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.063W |
| Resistance | 1KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Solder Lug |
| Tolerance | ±20% |
| Total Rotation | 300° |
