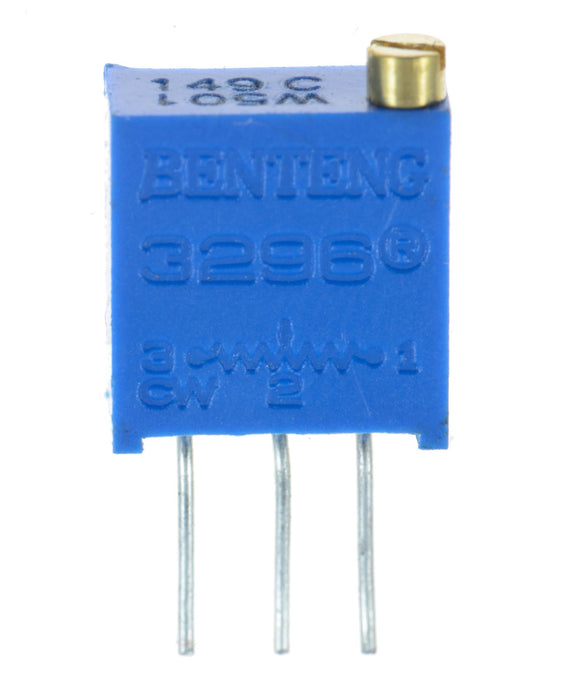

1M 3296 Variable Potentiometer Trimmer

1M 3296 Variable Potentiometer Trimmer

by Switch Electronics
SKU 133028

MPN: 133028

Availability:
183 in stock
£0.47 - £0.47
£0.47
£0.47
£0.47 - £0.47
£0.47
Top adjust 3/8" multi-turn cermet trimming potentiometer fully sealed in a robust construction suitable for PCB mounting.

  • 1m resistance
  • Top adjust
  • Mounted horizontally or vertically
  • 10% tolerance
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 150
    Maximum Voltage 300V
    MOQ 5
    Mounting Type PCB
    Operating Temperature -55°C to +125°C
    Pitch 2.54mm
    Power Rating 0.5W
    Resistance 1MΩ
    Termination Type Pin
    Tolerance ±10%
