1M Linear 16mm Potentiometer Solder Lugs
SKU 133048
MPN: 133048
Availability:
Out of stock
Sold out
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52

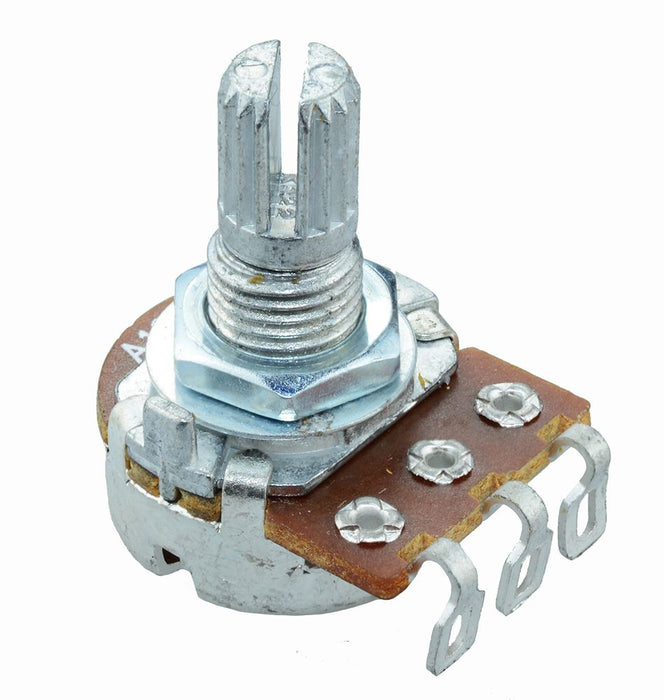

16mm potentiometers with a splined 6mm shaft and solder contacts.
1M linear Standard 16mm diameter size Solder lug contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 150 |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 200V |
| MOQ | 1 |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.125W |
| Resistance | 1MΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Solder Lug |
| Tolerance | ±20% |
| Total Rotation | 300° |
