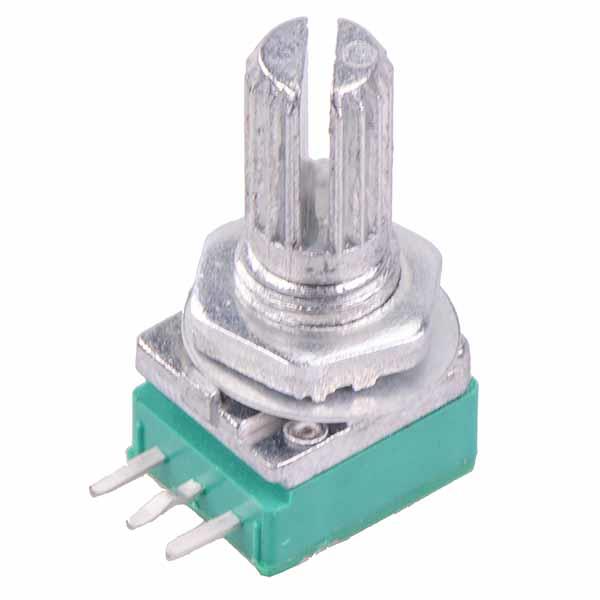

1M Linear 9mm Potentiometer Knurled 6mm Metal Shaft

SKU 482356

MPN: 482356

Availability:
723 in stock
Original price £0.54 - Original price £0.54
Original price
£0.54 Inc VAT
£0.54 - £0.54
Current price £0.54 Inc VAT
1M linear 9mm potentiometer featuring a metal 6mm splined shaft. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.

  • Metal 6mm splined shaft
  • 7mm panel cut-out
  • ±20% tolerance
  • 15mm shaft length
  • 0.05W power rating
  • 50V AC maximum operating voltage
  • Specification
    Back order lead time 45 Days
    Maximum voltage 50VAC
    Mounting hole diameter 7mm
    Mounting type PCB
    Operating temperature -10°C to +70°C
    Pitch 2.5mm
    Power rating 0.05W
    Resistance 1MΩ
    Shaft diameter 6mm
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 300°
