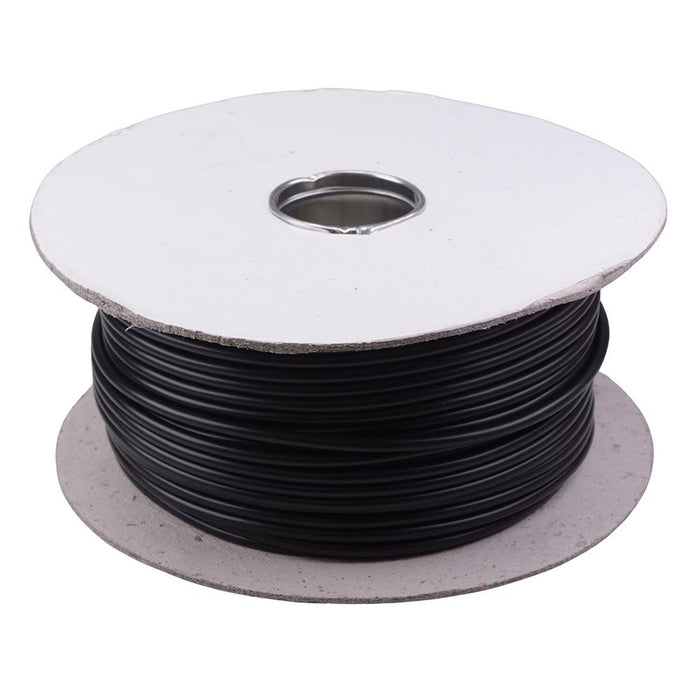

1mm² 2-Core Round Twin Thin Wall Cable 32/0.2mm 100M

SKU 490627

MPN: TW2C1TBRB100

Availability:
Only 5 left!
Original price £56.58 - Original price £56.58
Original price
£56.58
£56.58 - £56.58
Current price £56.58
2 core 1mm² round thin wall single core cable featuring 32/0.2mm stranding and a copper conductor. The cable is insulated by lightweight PVC with an outer sheath, providing excellent weight savings over standard PVC cable. The insulation provides protection against moisture, oil, petrol, diesel and other corossive substances. The narrow insulation and high current capacity makes it suitable for a wide range of automotive, marine and other low voltage applications.

  • Reel size: 100m
  • Stranding: 32/0.2mm
  • Insulation material: thin wall PVC
  • Conductor material: copper
  • Outer diameter: 5.0mm
  • Conductor cross section: 1mm²
  • Maximum current: 16.5A
  • Voltage rating: 60VDC
  • Operating temperature: -40°C to 105°C
  • Approvals: ISO6722-1, BS EN 60228:2005
  • Specification
    Back Order Lead Time 7 Days
    Colour Red / Black
    Conductor Cross Section 1mm²
    Conductor Material Copper
    Conductor Stranding 32/0.2mm
    Current Rating 16.5A
    Insulation Material PVC
    Length 100M
    MOQ 1
    Number of Cores 2
    Operating Temperature -40°C to 105°C
    Overall Diameter 5.0mm
    Voltage Rating 60VDC
