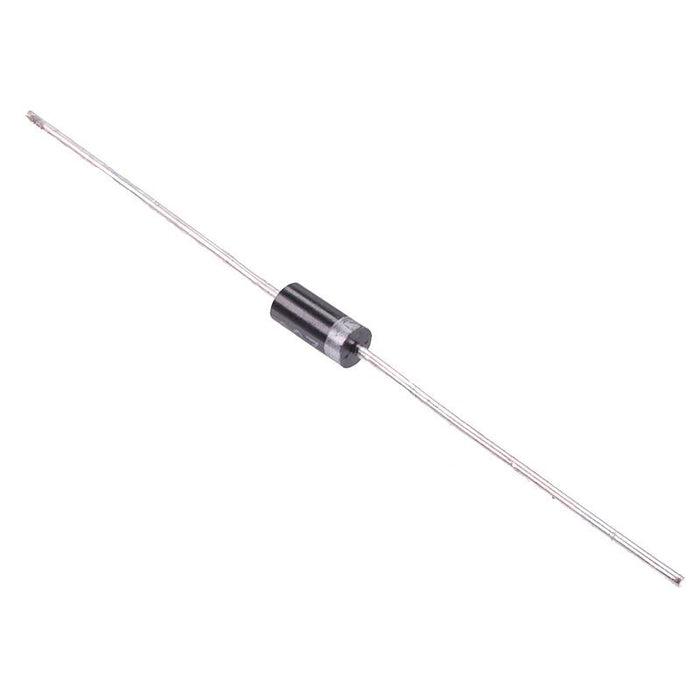

1N4001G Rectifier Diode 1A 50V

SKU 485490

MPN: 1N4001G

Availability:
1485 in stock
Original price £0.11 - Original price £0.11
Original price
£0.11 Inc VAT
£0.11 - £0.11
Current price £0.11 Inc VAT
The 1N4001G is a lead free standard recovery diode featuring low reverse leakage and forward voltage drop. The diode is suitable for general purpose low power applications including high frequency inverters and polarity protection.

  • Low reverse leakage current
  • Low forward voltage drop
  • High surge capacity
  • Meets UL flammability classification 94V-0
  • DO-41 molded plastic package
  • Maximum Repetitive Peak Reverse Voltage: 50V
  • Maximum Average Forward Rectified Current: 1A
  • Peak Forward Surge Current: 30A
  • Specification
    Average rectified current 1A
    Back order lead time 5 Days
    Body dimensions 5.2 x 2.7mm (Length x Diameter)
    Lead dimensions 25.4 x 0.7mm (Length x Diameter)
    Maximum dc blocking voltage 50V
    Maximum forward voltage 1.1V
    Maximum rms voltage 35V
    Moq 10
    Mounting style Through Hole
    Operating temperature -55°C to 150°C
    Package DO-41
    Packaging Tape
    Peak reverse voltage 50V
    Peak surge current 30A
