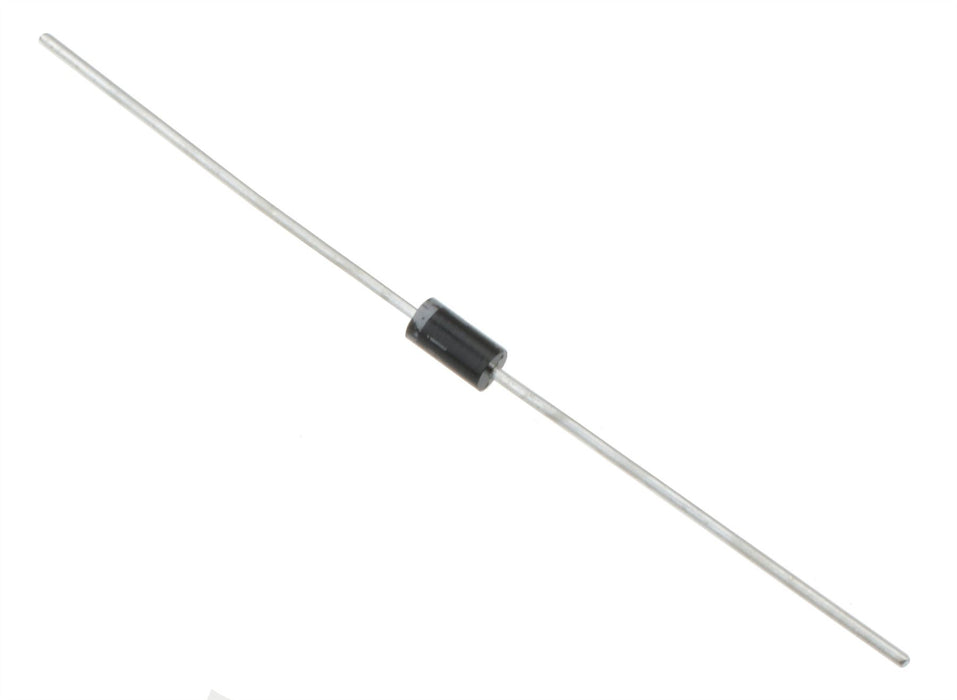

1N4004 Rectifier Diode 1A 400V
SKU 402003
MPN: 1N4004
Availability:
3588 in stock
Original price
£0.06
-
Original price
£0.06
Original price
£0.06
Inc VAT
£0.06
-
£0.06
Current price
£0.06
Inc VAT
Low leakage 1N4004 rectifier diode with a high current capability and low forward voltage drop suitable for a wide range of applications.
1A maximum average forward current Maximum repetitive peak reverse voltage: 400V 0.7mm diameter leads Supplied on tape packaging
Specification
| Average rectified current | 1A |
| Back order lead time | 40 Days |
| Body dimensions | 5.2 x 2.7mm (Length x Diameter) |
| Lead dimensions | 25.4 x 0.7mm (Length x Diameter) |
| Maximum dc blocking voltage | 400V |
| Maximum forward voltage | 1V |
| Maximum rms voltage | 280V |
| Moq | 10 |
| Mounting style | Through Hole |
| Operating temperature | -65°C to 175°C |
| Package | DO-41 |
| Packaging | Tape |
| Peak reverse voltage | 400V |
| Peak surge current | 30A |
