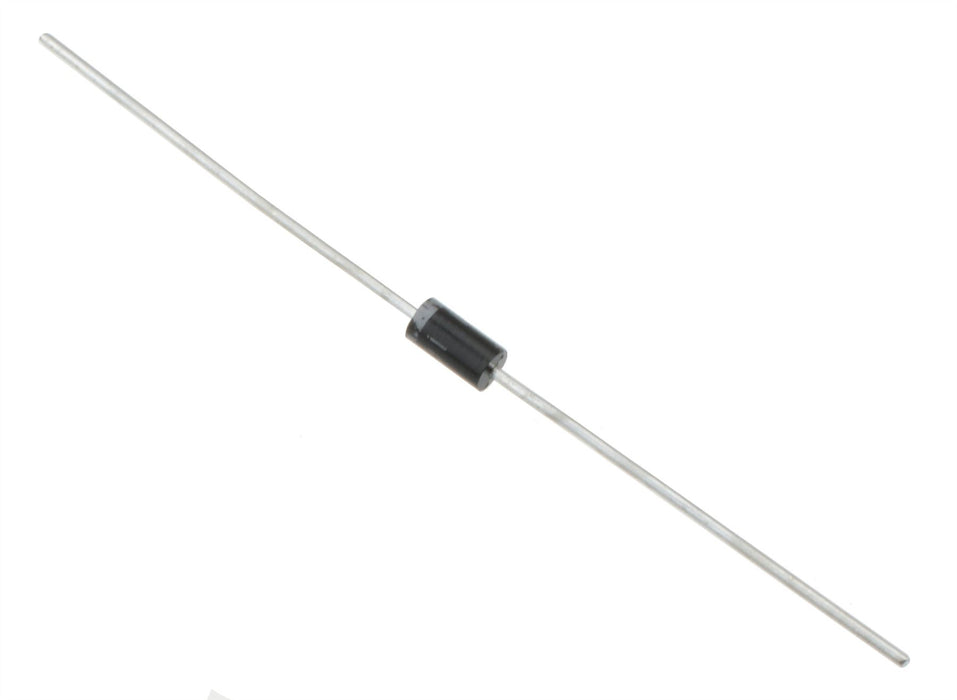

1N4006 Rectifier Diode 1A 800V
SKU 402005
MPN: 1N4006
Availability:
8319 in stock
Original price
£0.06
-
Original price
£0.06
Original price
£0.06
£0.06
£0.06
-
£0.06
Current price
£0.06
Low leakage 1N4006 rectifier diode with a high current capability and low forward voltage drop suitable for a wide range of applications.
1A maximum average forward current Maximum repetitive peak reverse voltage: 800V 0.7mm diameter leads Supplied on tape packaging
Specification
| Average Rectified Current | 1A |
| Back Order Lead Time | 40 Days |
| Body Dimensions | 5.2 x 2.7mm (Length x Diameter) |
| Lead Dimensions | 25.4 x 0.7mm (Length x Diameter) |
| Maximum DC Blocking Voltage | 800V |
| Maximum Forward Voltage | 1V |
| Maximum RMS Voltage | 560V |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Operating Temperature | -65°C to 175°C |
| Package | DO-41 |
| Packaging | Tape |
| Peak Reverse Voltage | 800V |
| Peak Surge Current | 30A |
