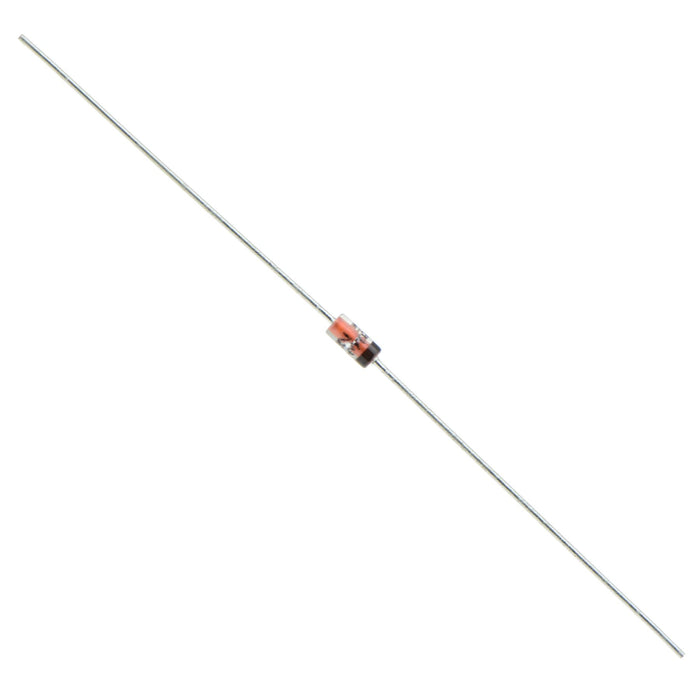

1N4148 Signal Diode 100V
SKU 402030
MPN: 1N4148
Availability:
6181 in stock
Original price
£0.06
-
Original price
£0.06
Original price
£0.06
Inc VAT
£0.06
-
£0.06
Current price
£0.06
Inc VAT
Signal diode with ultra-fast switching with axial leads suitable for a wide range of applications.
Non-repetitive peak reverse voltage: 100V DC blocking voltage: 75V Maximum average forward rectified current: 150mA Peak forward surge current: 500mA 0.45mm diameter leads Supplied on tape packaging
Specification
| Average rectified current | 150mA |
| Back order lead time | 40 Days |
| Body dimensions | 4.2 x 2.0mm (Length x Diameter) |
| Lead dimensions | 26 x 0.45mm (Length x Diameter) |
| Maximum forward voltage | 1V |
| Maximum rms voltage | 75V |
| Moq | 10 |
| Mounting style | Through Hole |
| Operating temperature | -65°C to 200°C |
| Package | DO-35 |
| Packaging | Tape |
| Peak reverse voltage | 100V |
| Peak surge current | 500mA |
