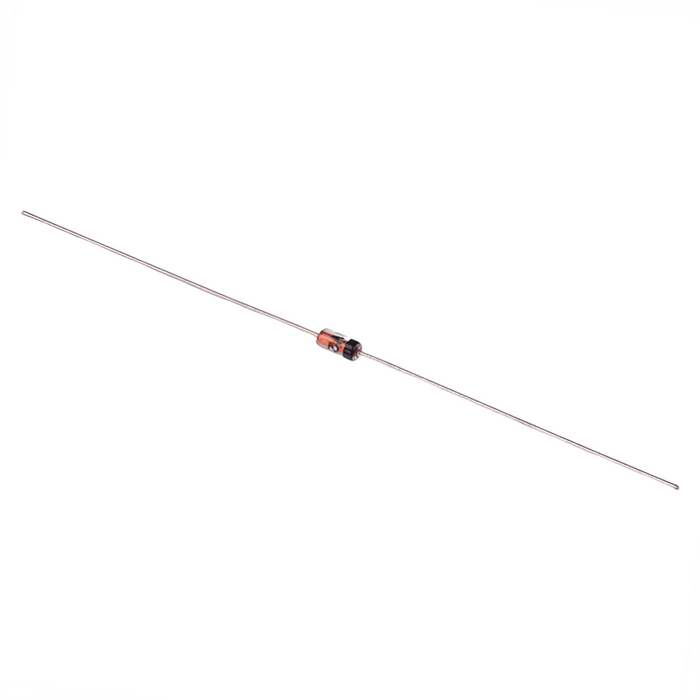

1N4448 Signal Diode 200mA 100V
by CDIL
SKU 486265
MPN: 1N4448
Availability:
910 in stock
Original price
£0.11
-
Original price
£0.11
Original price
£0.11
£0.11
-
£0.11
Current price
£0.11
The 1N4448 is a hermetically sealed small signal switching diode featuring low leakage current and ultrafast switching. The diode is suitable for general purpose, industrial and millitary applications.
DO-35 package Repetitive peak reverse voltage: 100V Maximum average forward rectified current: 200mA Power dissipation: 500mW
Specification
| Average Rectified Current | 200mA |
| Back Order Lead Time | 5 Days |
| Body Dimensions | 3.9 x 1.9mm (Length x Diameter) |
| Forward Continuous Current | 300mA |
| Lead Dimensions | 0.5mm |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Operating Temperature | -65°C to 175°C |
| Package | DO-35 |
| Packaging | Tape |
| Peak Reverse Voltage | 100V |
| Peak Surge Current | 4A |
