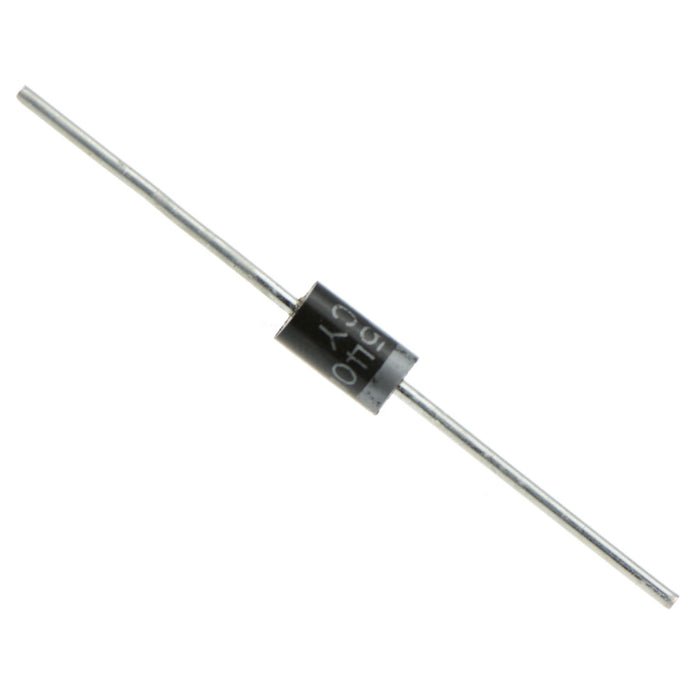

1N5400 Rectifier Diode 3A 50V
SKU 402047
MPN: 1N5400
Availability:
3545 in stock
Original price
£0.11
-
Original price
£0.11
Original price
£0.11
£0.11
-
£0.11
Current price
£0.11
Low leakage 1N5400 rectifier diode with a high current capability and low forward voltage drop suitable for general applications.
Maximum recurrent peak reverse voltage: 50V Maximum average forward current: 3A Peak forward surge current: 150A 1.2mm diameter leads Supplied on tape packaging
Specification
| Average Rectified Current | 3A |
| Back Order Lead Time | 40 Days |
| Body Dimensions | 9.5 x 5.3mm (Length x Diameter) |
| Lead Dimensions | 25.4 x 1.2mm (Length x Diameter) |
| Maximum DC Blocking Voltage | 50V |
| Maximum Forward Voltage | 1V |
| Maximum RMS Voltage | 35V |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Operating Temperature | -65°C to 175°C |
| Package | DO-201AD |
| Packaging | Tape |
| Peak Reverse Voltage | 50V |
| Peak Surge Current | 150A |
