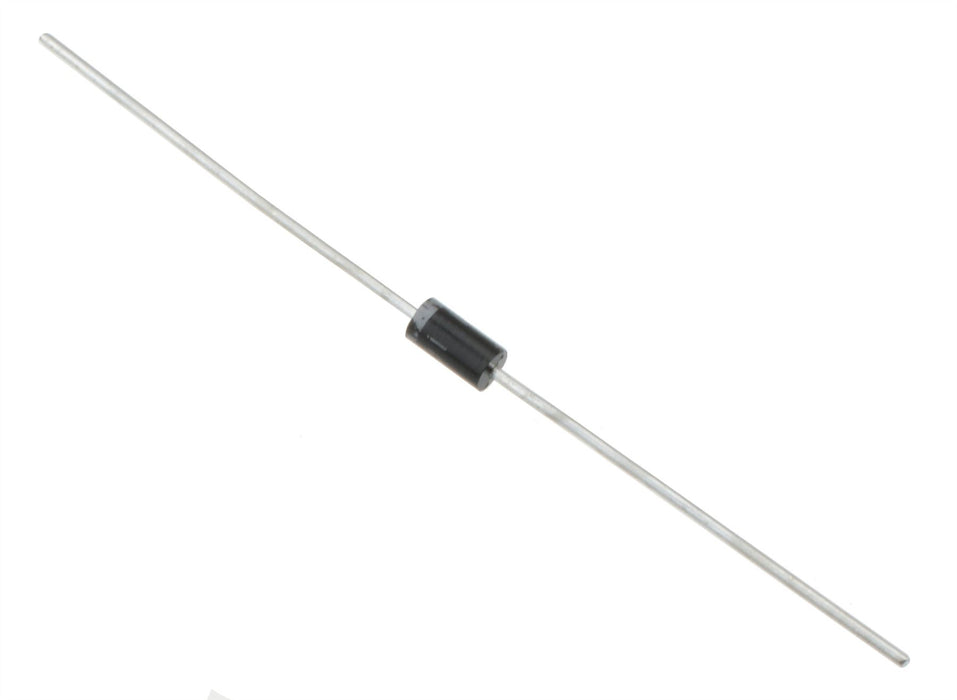

1N5817 Schottky Diode 1A 20V
SKU 402011
MPN: 1N5817
Availability:
4923 in stock
Original price
£0.09
-
Original price
£0.09
Original price
£0.09
Inc VAT
£0.09
-
£0.09
Current price
£0.09
Inc VAT
Power schottky rectifier diodes with axial leads suitable for low voltage applications.
Maximum recurrent peak reverse voltage: 20V Maximum average forward current: 1A 0.7mm diameter leads Supplied on tape packaging
Specification
| Average rectified current | 1A |
| Back order lead time | 40 Days |
| Body dimensions | 5.2 x 2.7mm (Length x Diameter) |
| Lead dimensions | 25.4 x 0.7mm (Length x Diameter) |
| Maximum dc blocking voltage | 20V |
| Maximum forward voltage | 0.45V |
| Maximum rms voltage | 14V |
| Moq | 10 |
| Mounting style | Through Hole |
| Operating temperature | -55°C to 125°C |
| Package | DO-41 |
| Packaging | Tape |
| Peak reverse voltage | 20V |
| Peak surge current | 25A |
