1R Arcol 10W Aluminium Clad Resistor HS10
by Arcol
SKU 399028
MPN:
Availability:
87 in stock
Original price
£1.83
-
Original price
£1.83
Original price
£1.83
Inc VAT
£1.83
-
£1.83
Current price
£1.83
Inc VAT

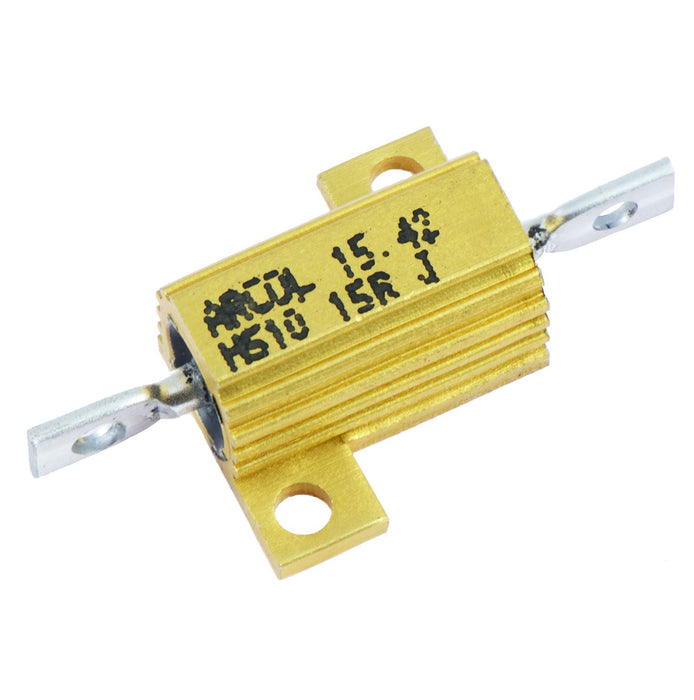

Arcol 10W aluminium clad resistors suitable for a wide range of applications where a high power dissipation is required. The resistors have a small package and are designed for direct heatsink mounting.
High power to volume Wound to maximise high pulse capability 5% tolerance Solder terminations Features 2 mounting holes Arcol HS series
Specification
| Back order lead time | 10 Days |
| Dimensions | 30.0 x 16.5 x 8.8mm (Length x Width x Height) |
| Heatsink area | 415cm² |
| Limiting element voltage | 160V |
| Mpn | HS10 1R J |
| Operating temperature | -55°C to +200°C |
| Packaging | Bulk |
| Power rating | 10W |
| Resistance | 1Ω |
| Temperature coefficient | ±100ppm/°C |
| Termination | Solder Lug |
| Tolerance | ±5% |
