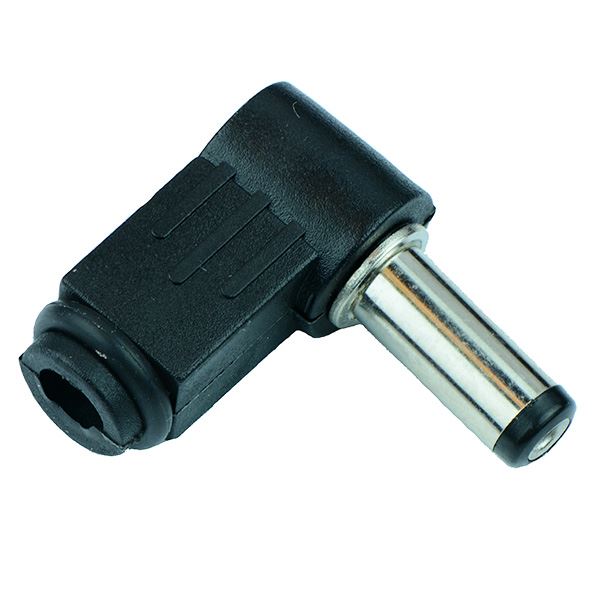

2.1 x 5.5mm Right Angle Long DC Plug Connector
SKU 550921
MPN: 550921
Availability:
Out of stock
Sold out
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
£0.32
-
£0.32
Current price
£0.32
DC connector featuring insulation manufactured from PA66 Easy to wire, suitable to replace exisiting power plugs.
Size: 2.1 x 5.5mm (inner x outer diameter) Right angle orientation Solder terminals Contact material: Brass Rating: 1A 30VDC Barrel length: 14mm Insulation unscrews to reveal terminals
Specification
| Back Order Lead Time | 150 |
| Barrel Length | 14mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 2.1mm |
| MOQ | 5 |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 5.5mm |
| Termination Method | Solder |
