Dual 12 Way 150A Power Distribution Busbar 300VAC / 48VDC
SKU 491236
MPN: SE61033-12DC
Availability:
23 in stock
Original price
£12.24
-
Original price
£12.24
Original price
£12.24
£12.85
£12.85
-
£12.85
Current price
£12.85

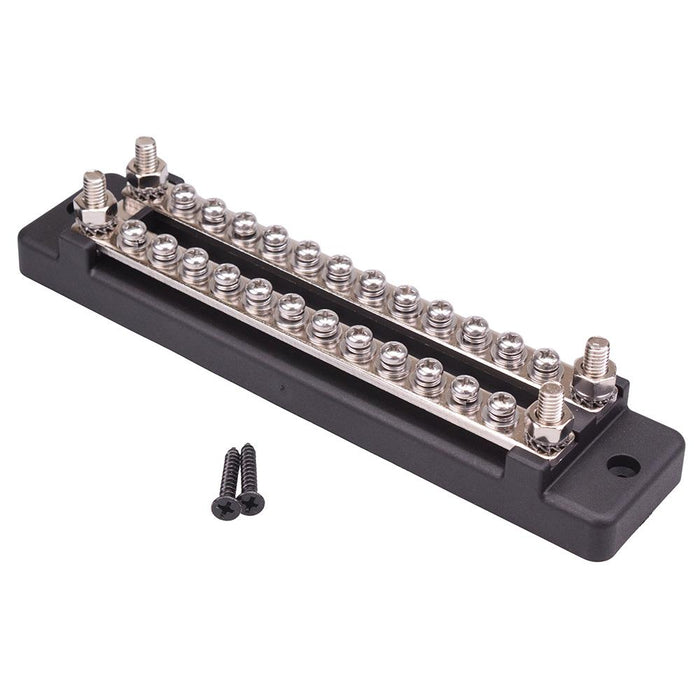

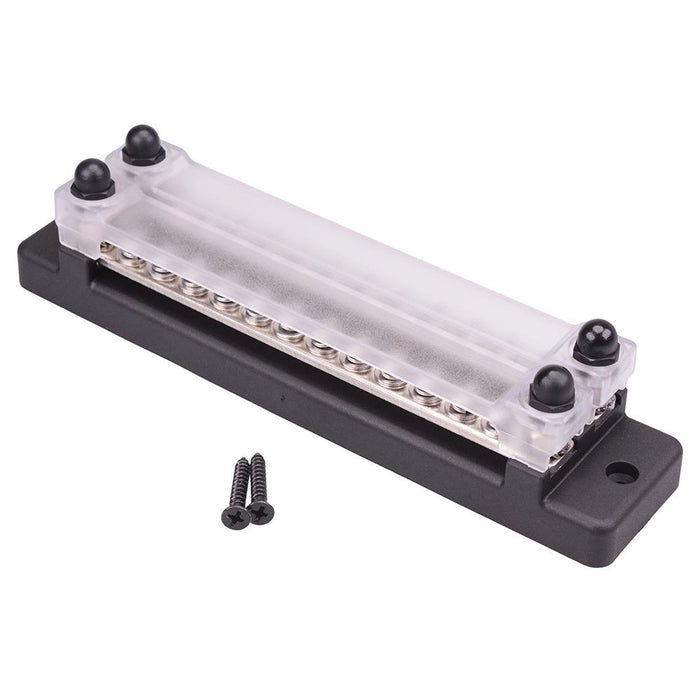

Dual row 12 way power distribution busbar featuring M6 stud terminals. The connecting terminals at both ends are used as the main power connections and the stud terminals for distributing the power. The busbar comes complete with fastening screws and protective cover.
4*M6 stud terminals 24*M4 connecting terminals Protective cover Current rating: 130A AC / 150A DC Voltage rating: 300VAC / 48VDC Dimensions: 180.6 x 40.1 x 42.5mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Current Rating | 150A |
| MOQ | 1 |
| Mounting Type | Chassis Mount |
| Termination Method | M4 Screw |
| Voltage Rating | 300VAC / 48VDC |
