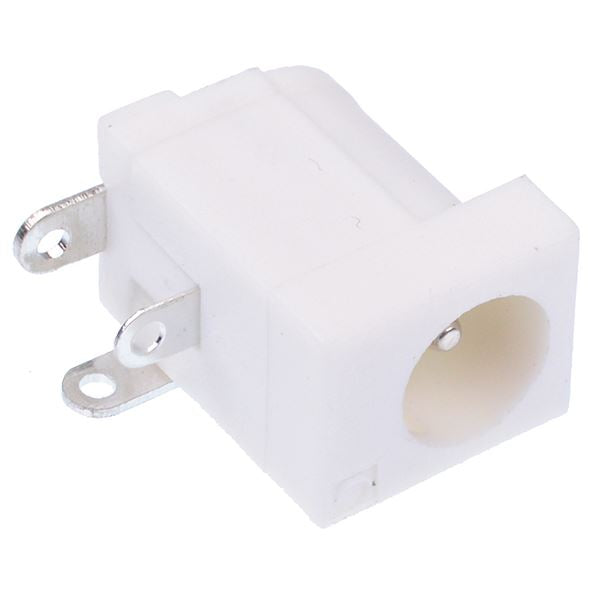

2.1mm and 2.5mm White PCB DC Power Socket FCR681466

SKU 485825

MPN: FCR681466

99 in stock
Original price £2.67 - Original price £2.67
Original price
£2.67 Inc VAT
£2.67 - £2.67
Current price £2.67 Inc VAT
The FCR681466 is a PCB mounting switched power socket for use with 2.1mm or 2.5mm diameter plugs featuring solder terminals, suitable for applications including power supplies.

  • Fits 2.1mm and 2.5mm diameter pins
  • Barrel outer diameter: 6.3mm
  • Rating: 12V 5A
  • Body material: PBT
  • Contact material: tin plated copper alloy
  • Solder terminals
  • Specification
    Back order lead time 5 Days
    Colour White
    Contact material Tin Plated Copper Alloy
    Contact rating 5A 12VDC
    Housing material PBT
    Inner diameter 2.1mm / 2.5mm
    Mounting type PCB
    Number of pins 3
    Outer diameter 6.3mm
    Termination method Solder
