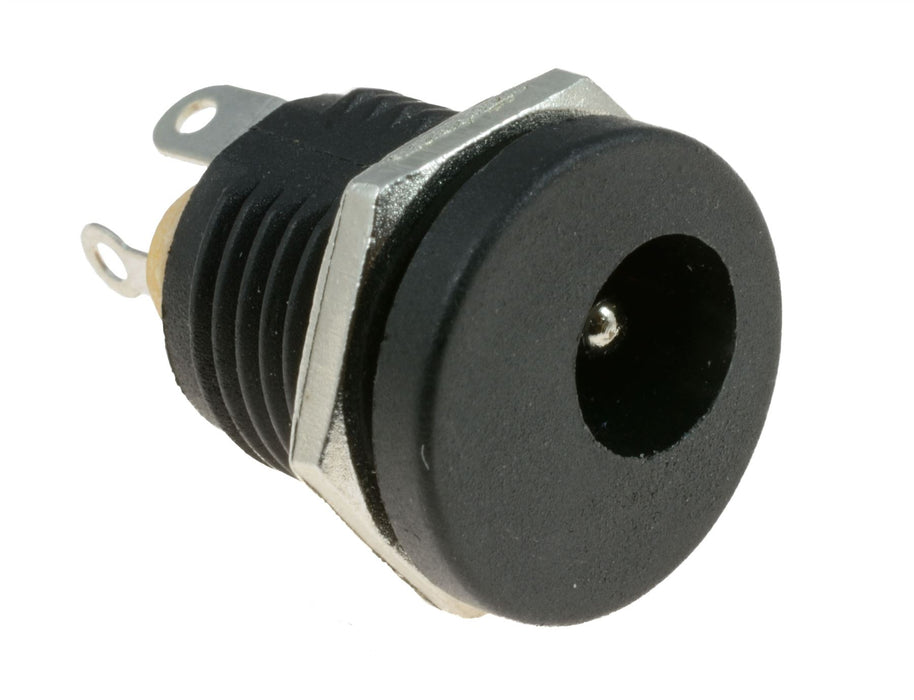

2.1mm x 5.5mm Panel Mount DC Power Socket DC-022

SKU 210009

MPN: 210009

2771 in stock
Original price £0.29 - Original price £0.29
Original price
£0.29 Inc VAT
£0.29 - £0.29
Current price £0.29 Inc VAT
Panel mounting DC power sockets suitable for a wide range of electronic applications.

  • 2.1mm x 5.5mm size
  • Solder lug termination
  • Panel cut-out: 12mm
  • Current rating: 1A
  • Voltage rating: 30VDC
  • Suitable for panel thickness up to 8mm
  • Dimensions: 18 x 13.6mm (Length x Diameter)
  • Supplied with fixing nut
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Nickel Plated Copper
    Contact rating 1A 30VDC
    Housing material PBT
    Inner diameter 2.1mm
    Mounting type Panel
    Number of pins 3
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Panel cut out 12mm
    Termination method Solder
