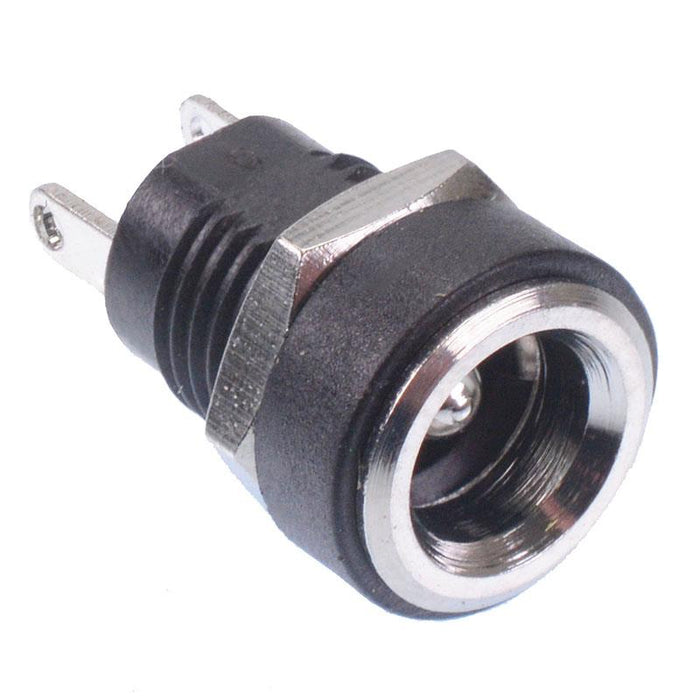

2.1mm x 5.5mm Panel Mount DC Power Socket DC-022B

SKU 210011

MPN: 210011

1849 in stock
Original price £0.50 - Original price £0.50
Original price
£0.50 Inc VAT
£0.50 - £0.50
Current price £0.50 Inc VAT
Panel mounting DC power sockets suitable for applications where limited space requires a socket with smaller dimensions.
  • 2.1mm x 5.5mm size
  • Solder lug termination
  • Panel cut-out: 8mm
  • Current rating: 0.5A
  • Voltage rating: 30VDC
  • Suitable for panel thickness up to 4mm
  • Dimensions: 18.2 x 10.2mm (Length x Diameter)
  • Supplied with fixing nut
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Nickel Plated Brass
    Contact rating 0.5A 30VDC
    Housing material PBT
    Inner diameter 2.1mm
    Mounting type Panel
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Panel cut out 8mm
    Termination method Solder
