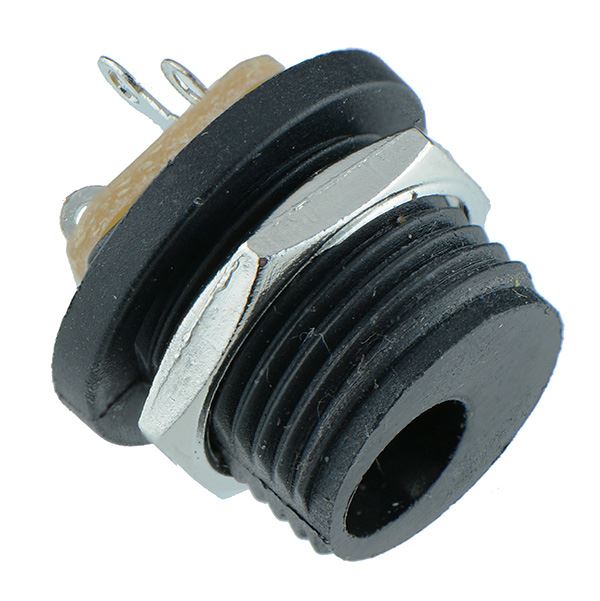

2.1mm x 5.5mm Panel Mount DC Socket
SKU 551670
MPN: 551670
Availability:
417 in stock
Original price
£0.33
-
Original price
£0.33
Original price
£0.33
£0.38
£0.38
-
£0.38
Current price
£0.38
Round DC power socket featuring a 2.1mm centre pin suitable for panel mount applications.
Size: 2.1mm x 5.5mm Rating: 30VDC 1A Panel cut-out: 12mm Moulded from PBT Maximum panel thickness: 9mm
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Copper |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 2.1mm |
| Mounting Type | Panel |
| Number of Pins | 3 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 5.5mm |
| Panel Cut Out | 12mm |
| Termination Method | Solder |
