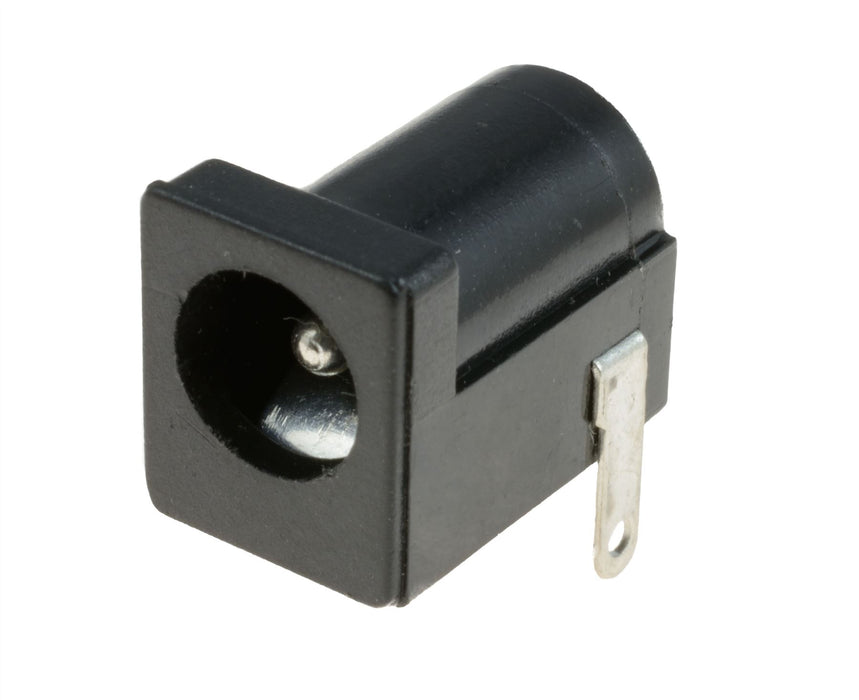

2.1mm x 5.5mm PCB DC Power Square Socket

2.1mm x 5.5mm PCB DC Power Square Socket

by Switch Electronics
SKU 210005

MPN: 210005

Availability:
Out of stock
Sold out
£0.23 - £0.23
£0.23
£0.23
£0.23 - £0.23
£0.23
Low cost PCB mounting DC power socket suitable for a range of low current applications.

  • 2.1mm x 5.5mm size
  • Right angle type
  • Solder lug termination
  • Single pole switch
  • 2A current rating
  • Voltage rating: 16VDC
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 150
    Colour Black
    Contact Material Nickel Plated Copper
    Contact Rating 2A 16VDC
    Housing Material PBT
    Inner Diameter 2.1mm
    MOQ 10
    Mounting Type PCB
    Number of Pins 3
    Operating Temperature -30°C to +70°C
    Outer Diameter 5.5mm
    Termination Method Solder
