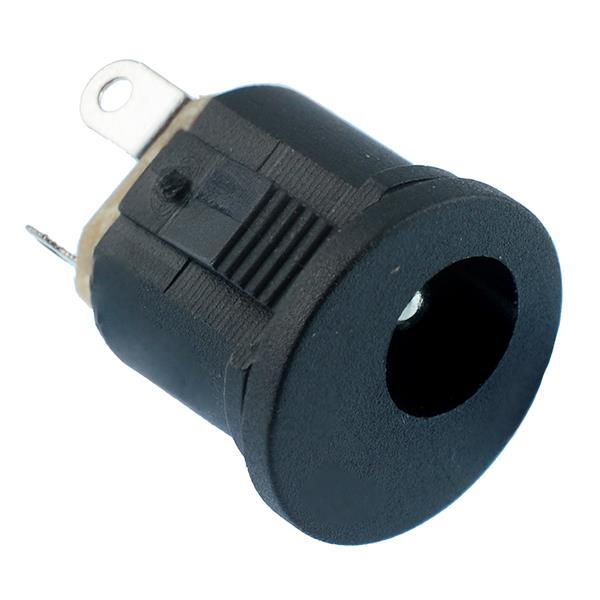

2.1mm x 5.5mm Push Fit Panel Mount DC Socket Connector

SKU 481999

MPN: 481999

Availability:
834 in stock
Original price £0.26 - Original price £0.26
Original price
£0.26 Inc VAT
£0.26 - £0.26
Current price £0.26 Inc VAT
DC power socket featuring a 2.1mm pin suitable for panel mount applications with a low voltage.

  • 2.1mm x 5.5mm size
  • Solder lug termination
  • Panel cut-out: 12mm
  • Current rating: 1A
  • Voltage rating: 30VDC
  • Suitable for panel thickness up to 8mm
  • Dimensions: 18 x 13.6mm (Length x Diameter)
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Nickel Plated Copper
    Contact rating 1A 30VDC
    Housing material PBT
    Inner diameter 2.1mm
    Mounting type Panel
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Panel cut out 12mm
    Termination method Solder
