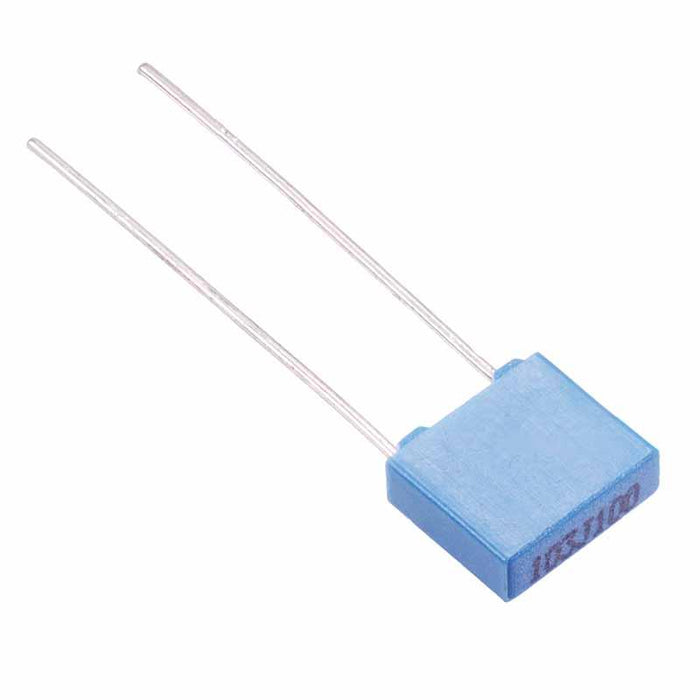

2.2nF 100V 5mm Polyester Box Capacitor
SKU 482862
MPN: JFF
Availability:
2496 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
£0.14
-
£0.14
Current price
£0.14
2.2nF 100V mini box 5mm polyester film capacitor manufactured from a non-inductive metal structure and wax sealed providing excellent insulation performance. The capacitors are widely used in DC and impulse circuits including communication equipment, radio, tv and other electronic equipment.
±5% tolerance 5mm pitch Moisture proof Flame retardant Low dissipation factor Excellent stability and reliability 7.2 x 2.5 x 6.5mm (Width x Thickness x Height)
Specification
| Back Order Lead Time | 45 Days |
| Capacitance | 2.2nF |
| Height | 6.5mm |
| Material | Polyester |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Operating Temperature | 85°C |
| Package | Box |
| Pitch | 5mm |
| Thickness | 2.5mm |
| Tolerance | ±5% |
| Voltage Rating | 100V |
| Width | 7.2mm |
