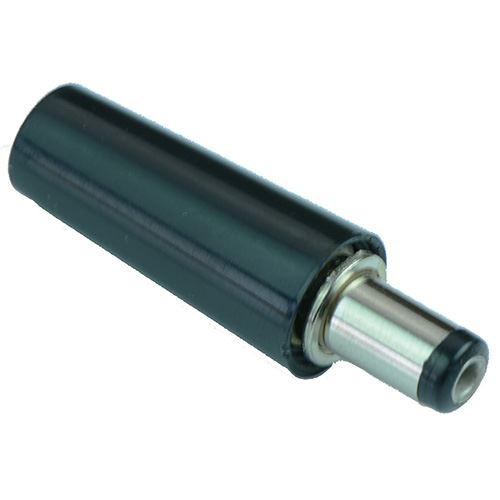

2.5 x 5.5mm DC Plastic Plug Connector

SKU 550920

MPN: 550920

Availability:
908 in stock
Original price £0.27 - Original price £0.27
Original price
£0.27 Inc VAT
£0.27 - £0.27
Current price £0.27 Inc VAT
DC connector featuring insulation manufactured from PBT Easy to wire, suitable to replace exisiting power plugs.

  • Size: 2.5 x 5.5mm (inner x outer diameter)
  • Solder terminals
  • Contact material: Brass
  • Rating: 1A 30VDC
  • Barrel length: 9mm
  • Insulation unscrews to reveal terminals
  • Specification
    Back order lead time 30 Days
    Barrel length 9mm
    Colour Black
    Contact material Nickel Plated Brass
    Contact rating 1A 30VDC
    Housing material PBT
    Inner diameter 2.5mm
    Mounting type Wire
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
