2.5 x 5.5mm DC Plug Connector 4A 12V 163402

by Lumberg
SKU 480822

MPN: 1634-02

Availability:
84 in stock
Original price £1.83 - Original price £1.83
Original price
£1.83 Inc VAT
£1.83 - £1.83
Current price £1.83 Inc VAT

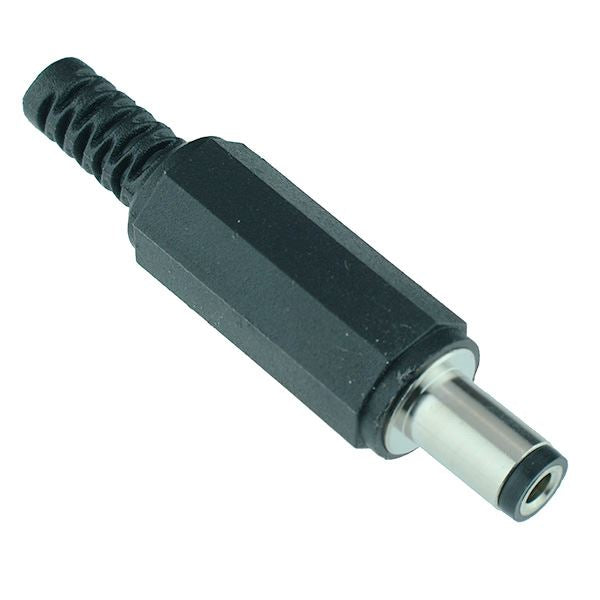

High quality 2.5mm x 5.5mm DC power plug manufactured by Lumberg, featuring solder contacts and cable strain relief. Suitable for DC power applications requiring a reliable connection solution.

  • Current rating: 4A
  • Voltage rating: 12VDC
  • Size: 2.5 x 5.5mm
  • Barrel length: 9.5mm
  • Housing material: PE
  • Contact material: Cu alloy, nickel plated
  • Specification
    Back order lead time 5 Days
    Barrel length 9.5mm
    Colour Black
    Contact material Cu Alloy, Nickel Plated
    Contact rating 4A 12VDC
    Housing material PE
    Inner diameter 2.5mm
    Mounting type Wire
    Number of pins 2
    Operating temperature -20°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
