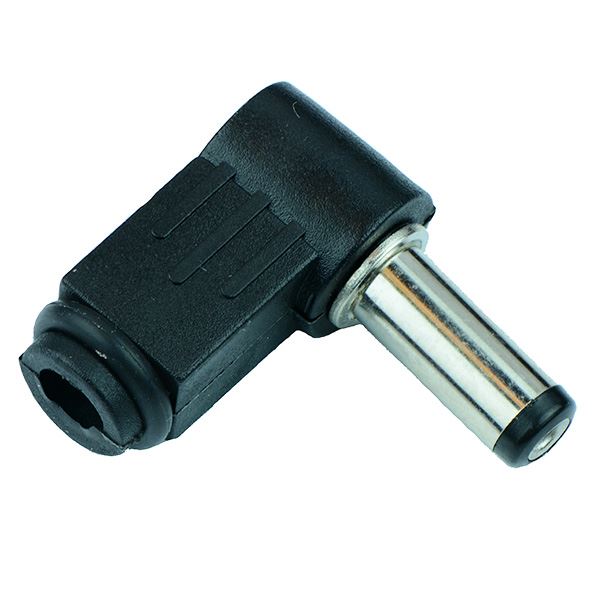

2.5 x 5.5mm Right Angle Long DC Plug Connector
SKU 550922
MPN: 550922
Availability:
1927 in stock
Original price
£0.31
-
Original price
£0.31
Original price
£0.31
£0.31
-
£0.31
Current price
£0.31
DC connector featuring insulation manufactured from PA66 Easy to wire, suitable to replace exisiting power plugs.
Size: 2.5 x 5.5mm (inner x outer diameter) Right angle orientation Solder terminals Contact material: Brass Rating: 1A 30VDC Barrel length: 14mm Insulation unscrews to reveal terminals
Specification
| Back Order Lead Time | 30 Days |
| Barrel Length | 14mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 2.5mm |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 5.5mm |
| Termination Method | Solder |
