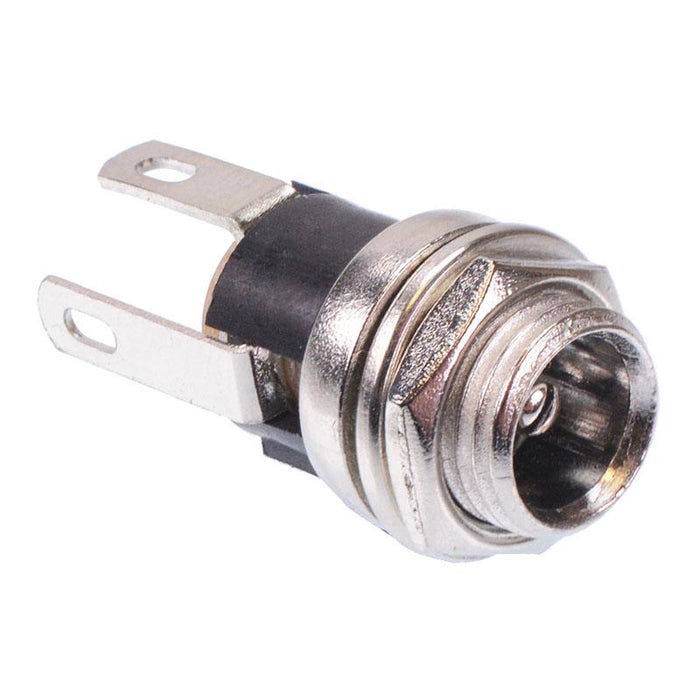

2.5mm x 5.5mm Metal Panel Mount DC Power Socket

SKU 210007

MPN: 210007

Availability:
3193 in stock
Original price £0.39 - Original price £0.39
Original price
£0.39 Inc VAT
£0.39 - £0.39
Current price £0.39 Inc VAT
Metal panel mounting DC power sockets suitable for a wide range of electronic applications.

  • 2.5mm x 5.5mm size
  • Solder lug termination
  • Panel cut-out: 8mm
  • Current rating: 1A
  • Voltage rating: 30VDC
  • Supplied with washer and nut
  • Specification
    Back Order Lead Time 30 Days
    Colour Silver
    Contact Material Nickel Plated Copper
    Contact Rating 1A 30VDC
    Housing Material PBT
    Inner Diameter 2.5mm
    Mounting Type Panel
    Number of Pins 3
    Operating Temperature -30°C to +70°C
    Outer Diameter 5.5mm
    Panel Cut Out 8mm
    Termination Method Solder
