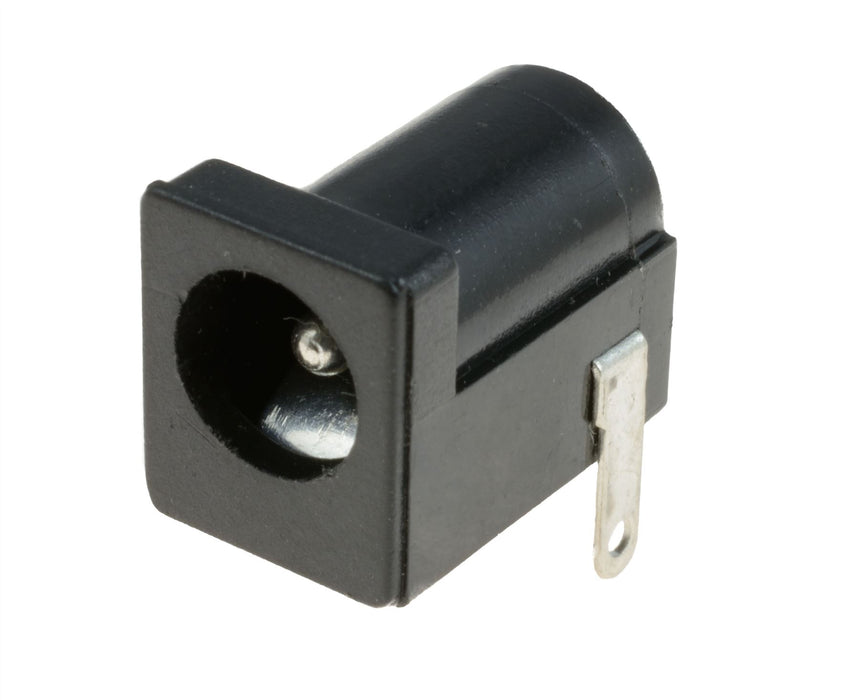

2.5mm x 5.5mm PCB DC Power Square Socket

SKU 210008

MPN: 210008

1756 in stock
Original price £0.33 - Original price £0.33
Original price
£0.33 Inc VAT
£0.33 - £0.33
Current price £0.33 Inc VAT
Low cost PCB mounting DC power socket suitable for a range of low current applications.

  • 2.1mm x 5.5mm size
  • Right angle type
  • Solder lug termination
  • Single pole switch
  • 2A current rating
  • Voltage rating: 16VDC
  • Fits plugs with a 9.5mm length barrel
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Nickel Plated Copper
    Contact rating 2A 16VDC
    Housing material PBT
    Inner diameter 2.5mm
    Mounting type PCB
    Number of pins 3
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
