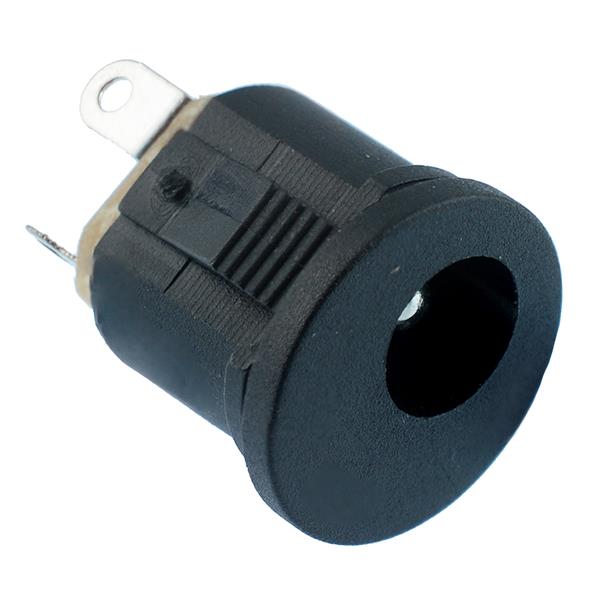

2.5mm x 5.5mm Push Fit Panel Mount DC Socket Connector
SKU 482000
MPN: 482000
Availability:
885 in stock
Original price
£0.34
-
Original price
£0.34
Original price
£0.34
Inc VAT
£0.34
-
£0.34
Current price
£0.34
Inc VAT
DC power socket featuring a 2.5mm pin suitable for panel mount applications with a low voltage.
2.5mm x 5.5mm size Solder lug termination Panel cut-out: 12mm Current rating: 1A Voltage rating: 30VDC Suitable for panel thickness up to 8mm Dimensions: 18 x 13.6mm (Length x Diameter)
Specification
| Back order lead time | 30 Days |
| Colour | Black |
| Contact material | Nickel Plated Copper |
| Contact rating | 1A 30VDC |
| Housing material | PBT |
| Inner diameter | 2.5mm |
| Mounting type | Panel |
| Number of pins | 2 |
| Operating temperature | -30°C to +70°C |
| Outer diameter | 5.5mm |
| Panel cut out | 12mm |
| Termination method | Solder |
