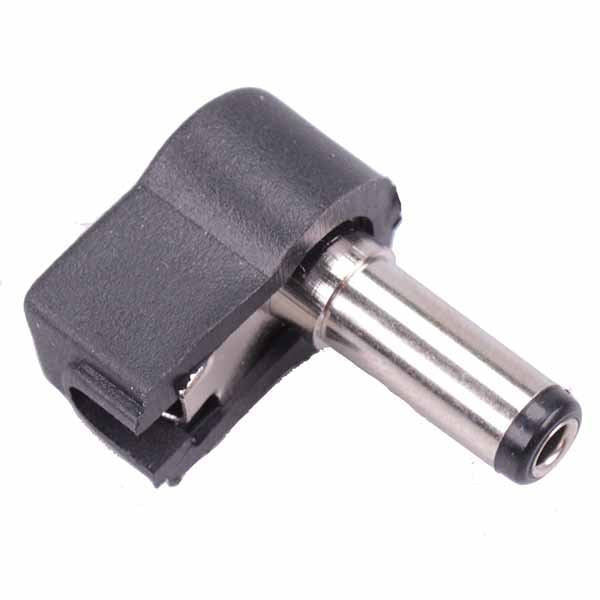

2.5mm x 5.5mm Right Angle Long DC Plug Connector

SKU 482534

MPN: 482534

Availability:
1507 in stock
Original price £0.29 - Original price £0.29
Original price
£0.29 Inc VAT
£0.29 - £0.29
Current price £0.29 Inc VAT
2.5mm x 5.5mm DC connector featuring insulation manufactured from ABS, suitable to replace exisiting power plugs.

  • Size: 2.5 x 5.5mm (inner x outer diameter)
  • Right angle orientation
  • Solder terminals
  • Rating: 1A 30VDC
  • Barrel length: 14mm
  • <
    Specification
    Back order lead time 30 Days
    Barrel length 14mm
    Colour Black
    Contact material Brass
    Contact rating 1A 30VDC
    Housing material Plastic
    Inner diameter 2.5mm
    Mounting type Wire
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
