2.5mm x 5.5mm SMT DC Power Square Socket
SKU 483042
MPN: 483042
Availability:
910 in stock
Original price
£0.25
-
Original price
£0.25
Original price
£0.25
£0.25
-
£0.25
Current price
£0.25

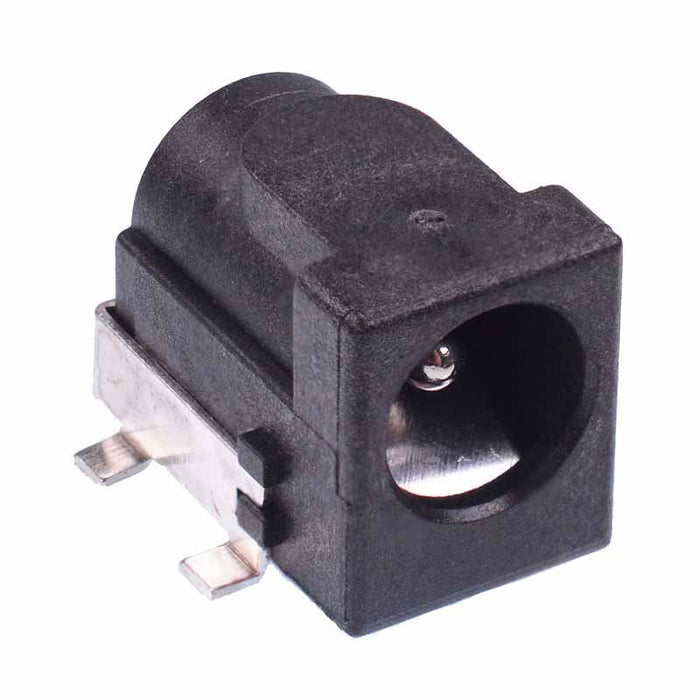

DC power jack connector featuring a 2.5mm center pin suitable for mounting horizontally to a PCB.
Size: 2.5mm x 5.5mm Solder contacts 2*pin supports Rating: 0.5A 30VDC Dimensions: 14.8 x 11 x 9mm (Length x Height x Width)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Silver Plated Brass |
| Contact Rating | 0.5A 30VDC |
| Housing Material | PA9T |
| Inner Diameter | 2.5mm |
| Mounting Type | PCB |
| Number of Pins | 4 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 5.5mm |
| Termination Method | Solder |
