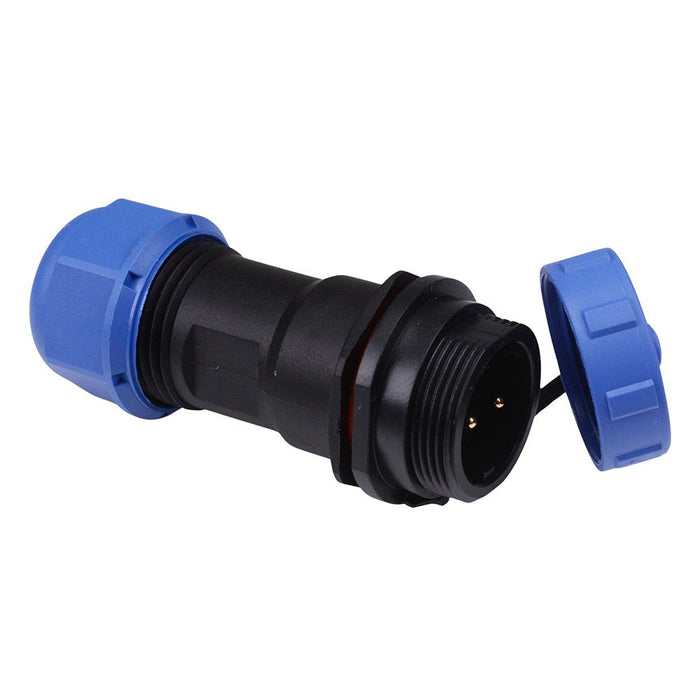

2 Pin Waterproof W17 Male Socket Cable Connector IP68 10A

SKU 488533

MPN: 488533

140 in stock
Original price £2.75 - Original price £2.75
Original price
£2.75 Inc VAT
£2.75 - £2.75
Current price £2.75 Inc VAT
2 way male socket featuring IP68 protection and 10A current rating, suitable for applications requiring a waterproof and rugged circular connector.

  • Outer cable diameter: 6-10mm
  • Protection level: IP68
  • Rating: 10A 500V
  • Solder termination
  • Rated for 500 mating cycles
  • Dimensions: 56 x 25mm (length x diameter)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 10A
    Gender Male
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 2
    Operating temperature -25°C to +80°C
    Protection level IP68
    Termination method Solder
    Thread size W17
    Voltage rating 500V
    Wire range 6-10mm Diameter
