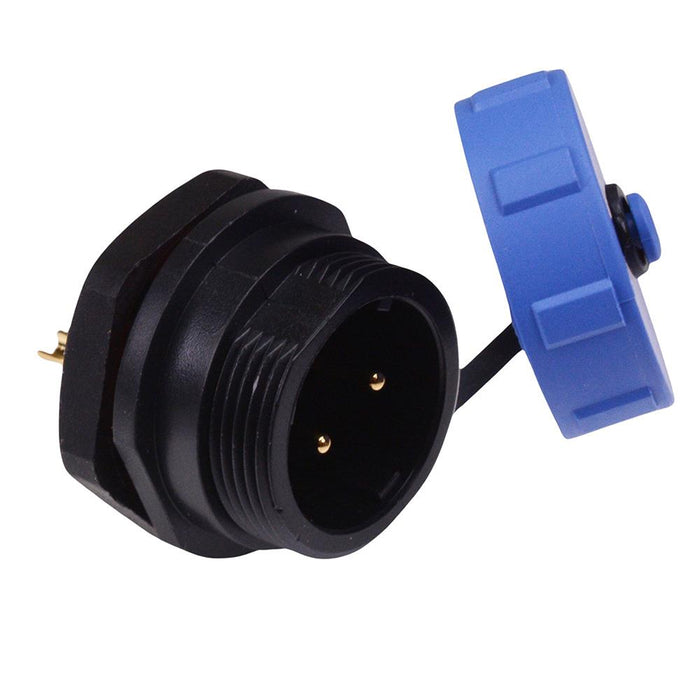

2 Pin Waterproof W17 Male Socket Panel Mount Connector IP68 10A
SKU 488540
MPN: 488540
Availability:
41 in stock
Original price
£2.35
-
Original price
£2.35
Original price
£2.35
£2.35
-
£2.35
Current price
£2.35
2 way male panel mount socket featuring IP68 protection and 10A current rating, suitable for applications requiring a waterproof and rugged circular connector.
Protection level: IP68 Rating: 10A 500V Panel cut-out: 17 x 16mm Panel thickness: 3mm max Solder termination Rated for 500 mating cycles Dimensions: 25.2 x 25.5mm (height x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 10A |
| Gender | Male |
| Housing Material | PA66 |
| Mounting Type | Panel Mount |
| Number of Ways | 2 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 17mm |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W17 |
| Voltage Rating | 500V |
