2 Pole 6 Way Rotary Switch 6mm Actuator
SKU 483321
MPN: 483321
Back Order Availability: 45
Availability:
323 in stock, ready to be shipped
Original price
£1.22
-
Original price
£1.22
Original price
£1.22
Inc VAT
£1.22
-
£1.22
Current price
£1.22
Inc VAT

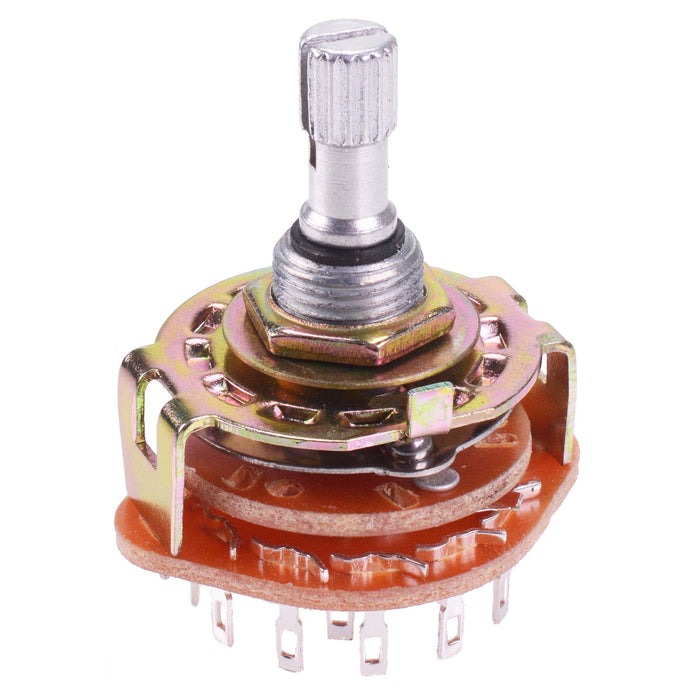

2 pole 6 way rotary switch featuring a splined 6mm shaft featuring solder terminals, suitable for panel mount applications.
2 pole 6 position 0.5A 125VAC, 0.3A 250VAC Solder terminals 6mm splined shaft Mounting hole diameter: 9.5mm Dimensions: 39.5 x 31mm (Height x Width)
Specification
| Back order lead time | 45 |
| Contact configuration | 2P6T |
| Contact rating | 0.5A 125VAC, 0.3A 250VAC |
| Current rating | 0.5A @ 125VAC |
| Electrical life | 20,000 Cycles |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of ways | 6 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 9.5mm |
| Terminal type | Solder |
| Voltage rating | 250VAC |
