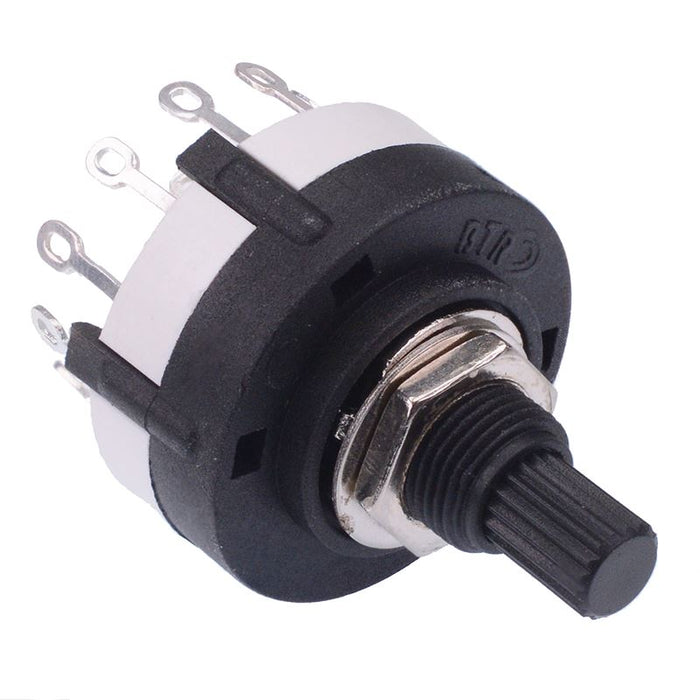

2 Pole 6 Way Rotary Switch Splined Shaft Solder Terminals
SKU 486495
MPN: 486495
Availability:
35 in stock
Original price
£1.57
-
Original price
£1.57
Original price
£1.57
Inc VAT
£1.57
-
£1.57
Current price
£1.57
Inc VAT
2 pole break before make rotary switch featuring 6 ways and 18T splined 6mm shaft. The switch features solder terminals and are suitable for a wide range of panel mount applications.
2 pole 6 way 18T splined shaft Solder terminals Break before make 7.5mm shaft length Complete with nut, washer and position stop Dimensions: 36.5 x 26mm (Height x Diameter)
Specification
| Back order lead time | 30 Days |
| Contact configuration | 2P6T |
| Contact rating | 2.5A 125VAC, 0.35A 125VDC |
| Current rating | 2.5A @ 125VAC |
| Electrical life | 15,000 Cycles |
| Material | Nylon |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of ways | 6 |
| Operating force | 400gf |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 10mm |
| Terminal type | Solder |
| Voltage rating | 125VAC |
