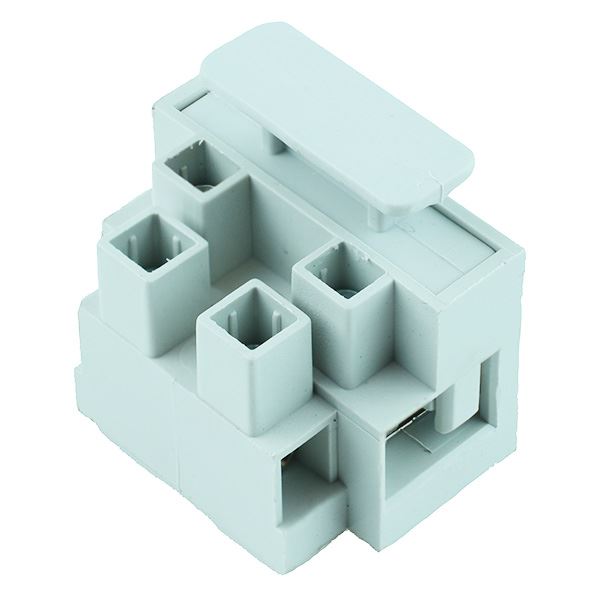

2-Pole Fused Terminal Block 13A
by Hylec
SKU 480976
MPN: DFTBN/2
Availability:
Out of stock
Sold out
Original price
£1.07
-
Original price
£1.07
Original price
£1.07
£1.07
£1.07
-
£1.07
Current price
£1.07
Fused 2 pole terminal block manufactured from PA66 featuring a 18.8mm pitch, suitable for use with 5x20mm fuses.
Interlocking capability Anti rotation spigot UL94V-0 rating IP20 finger protection 2.5mm maximum conductor size 13A maximum current rating 300V maximum voltage rating Dimensions: 18.8 x 13.5 x 18.3mm (Height x Width x Length)
Specification
| Back Order Lead Time | 5 |
| Contact Material | Nickel Plated Brass |
| Current Rating | 13A |
| Housing Material | Polyamide |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 2 |
| Operating Temperature | -30°C to +120°C |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 14-20AWG |
