2 Position 19mm Metal Key Switch NO/NC

SKU 486527

MPN: 486527

Availability:
26 in stock
Original price £7.81 - Original price £7.81
Original price
£7.81 Inc VAT
£7.81 - £7.81
Current price £7.81 Inc VAT

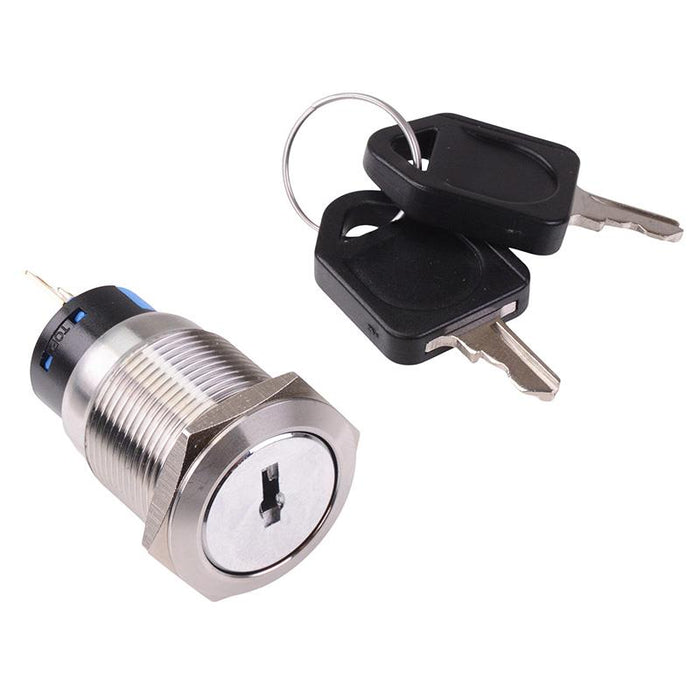

2 position vandal resistant key switch featuring removable keys in both positions, and stainless steel body. The switch features NO/NC contacts and requires a 19mm panel cut-out diameter.

  • NO/NC contacts
  • 2 positions
  • Key removable in both positions
  • 19mm panel cut-out
  • IP65 protection rating
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Key index angle 90°
    Key withdrawal position 1&2
    Material Stainless Steel
    Mounting style Panel Mount
    Number of positions 2
    Operating temperature -20°C to +85°C
    Panel cut out 19mm
    Switch operation On-On
    Voltage rating 250VAC
